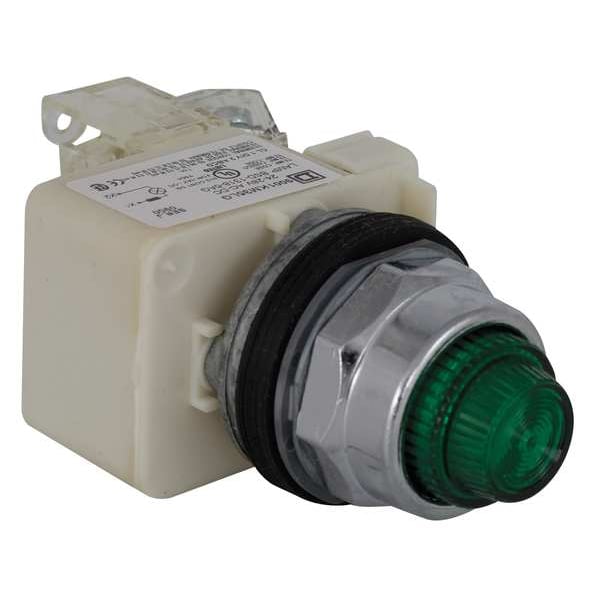

Botón de prueba con luz piloto, verde, LED.
| Item | Pilot Light |
|---|---|
| Voltage | 120V AC |
| Color | Green |
| Lamp Type | LED |
| Type of Operator | Spring Return |
| Shape | Round |
| Terminal Connection | Screw Clamp |
| Contact Form | 1 C/O |
| Lens Material | Polycarbonate |
| Bezel | Metal |
| Size | 30 mm |
| Lens Type | Fresnel |
| Lamp Module Type | Full Voltage |
| Basic Material | Metal |
| Body Material | Zinc Die Cast |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 6 |
| Standards | REACH, RoHS, UL 508, WEEE |
| Replacement Lamps | N/A |
| Lamp Voltage | 120V AC |
| IP Rating | IP66 |
| Includes | Light Module and LED Lamp |
| Legend | Not Applicable |
| Rated Breaking Capacity | 1.2 kA 600 V AC-15, 720 VA; 1.5 kA 480 V AC-15, 720 VA; 3 kA 240 V AC-15, 720 VA; 6 kA 120 V AC-15, 720 VA; 0.27 kA 600 V DC-13; 0.55 kA 250 V DC-13; 0.1 kA 125 V DC-13 |
| Mounting Diameter | 1.18 in |
| Short-Circuit Protection | 10 A cartridge fuse IEC 60947-5-1 |
| Shape Of Signaling Unit Head | Octagonal |
| Connections - Terminals | Screw clamp terminals 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1 |
| Protective Treatment | TC |
| Product Or Component Type | Push-to-test pilot light |
| Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Electrical Shock Protection Class | Class II IEC 61140 |
| Tightening Torque | 7.08 lbf.in (0.8 N.m) IEC 60947-1 |
| Shape Of Screw Head | Cross slotted |
| Vibration Resistance | 7 gn 2 to 500 Hz)IEC 60068-2-6 |
| Light Block Supply | Direct |
| IP Degree Of Protection | IP66 IEC 60529 |
| Conventional Free Air Thermal Current | 10 A |
| Rated Supply Voltage | 120 V AC/DC |
| Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Mechanical Durability | 5,000,000 cycle |
| NEMA Degree Of Protection | NEMA 1; NEMA 12; NEMA 13; NEMA 2; NEMA 3; NEMA 3R; NEMA 4 |
| Rated Short Circuit Making Capacity | 12 kA 600 V AC-15, 7200 VA; 15 kA 480 V AC-15, 7200 VA; 30 kA 240 V AC-15, 7200 VA; 60 kA 120 V AC-15, 7200 VA; 0.55 kA 125 V DC-13 |
| Ambient Air Temperature For Storage | -40 to 158°F |
| Product Certifications | NEMA; UL 508 |
| Bulb Base | BA 9s |
| Rated Operational Current | 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| Contacts Material | Silver alloy |
| Operator Profile | Green projecting, unmarked |
| Positive Opening | Without |
| Ambient Air Temperature For Operation | -13 to 158°F |
| Contact Operation | Standard |
| Operating Position | Any position |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Device Presentation | Complete product |
| Lamp Color | Green |
| Overall Width | 2.13 in |
| Hazardous Location Specification | Not Applicable |
| Overall Depth | 1.65 in |
| NEMA Enclosure Rating | 13, 4, 12, 3, 3R, 1, 2 |
| Resistance Properties | Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof |
| Voltage Rating - Maximum | 120 V AC/DC |
| Includes Lens | Lens Included |
| Series | 9001K |
| Includes Push-To-Test | Push-To-Test Included |
| Manufacturer Warranty Length | 18 mo |
| Body Finish | Chrome Plated |
| Panel Cutout Diameter | 30 mm |
| Lamp Voltage - Maximum | 120 V AC |
| Overall Height | 4.1 in |
| Includes Lamp Module | Lamp Module Included |
| Lens Color | Green |
| ATEX Explosive Environment Rating | Not Applicable |
| Package Quantity | 1 |
