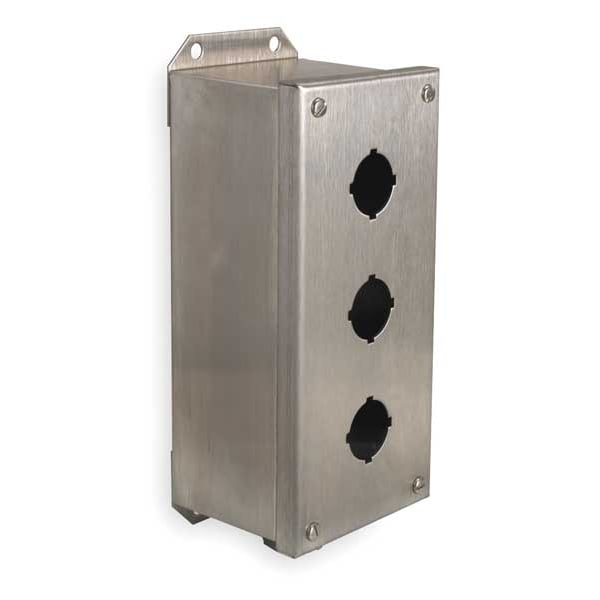

Caja para botón pulsador, 10.24 pulgadas de alto, acero inoxidable 304
| Item | Push Button Enclosure |
|---|---|
| Material | Stainless Steel |
| Height | 10.24 in |
| Width | 4.18 in |
| Conduit Size | 3/4 in |
| Hole Size | 30 mm |
| Number of Columns | 1 |
| Number of Holes | 3 |
| Depth | 3.63 in |
| NEMA Rating | 1, 13, 3, 4, 4X |
| Standards | RoHS |
| Dimensions | 10.24 in H x 4.18 in W x 3.63 in D |
| Ambient Air Temperature For Storage | -40-70°C |
| Cable Entry | 1 entry tapped for 3/4'' knockout |
| Protective Treatment | TH |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 3 || NEMA 4 || NEMA 4X |
| Product Destination | for Ø 30 mm control and signalling units |
| Number Of Cut-Out | 3 cut-outs |
| Ambient Air Temperature For Operation | -25-70°C |
| Device Short Name | 9001K |
| Product Or Component Type | empty enclosure |
| Overvoltage Category | II IEC 61140 |
| NEMA Enclosure Rating | 4X, 12, 4, 3, 1 |
| Panel Cutout Diameter | 30 mm |
| Overall Depth | 3-5/8 in |
| Compatible with Series | 9001K, 9001KS |
| Overall Width | 4-3/16 in |
| Overall Height | 10-1/4 in |
| Compatible Conduit Size - Maximum | 3/4 in |
| Package Quantity | 1 |
