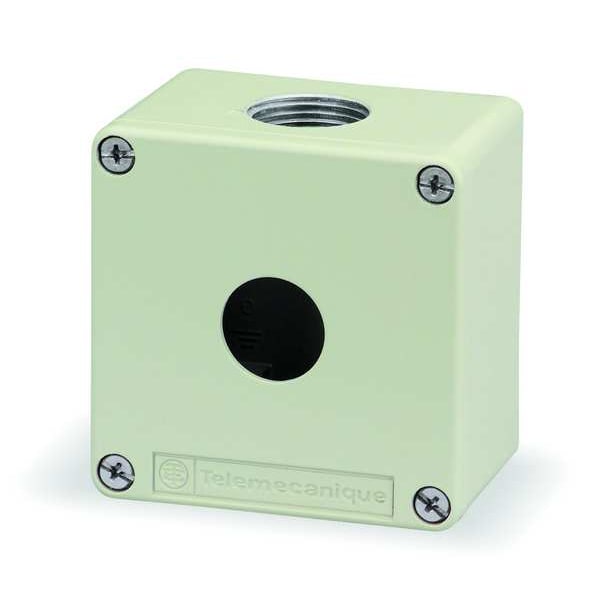

Caja para botón de presión, 22 mm, 1 agujero, metal.
| Item | Push Button Enclosure |
|---|---|
| Number of Columns | 1 |
| Hole Size | 22 mm |
| Material | Die Cast Zinc |
| Number of Holes | 1 |
| Conduit Size | 3/4 in |
| NEMA Rating | 12, 13, 4 |
| Dimensions | 2.03 in H x 3.15 in W x 3.15 in D |
| Cable Entry | cable gland || 1 x cable gland |
| Height | 2.03 in |
| Width | 3.15 in |
| Depth | 3.15 in |
| Color | Gray |
| Contact Block Depth | 1.93 in |
| Standards | RoHS |
| Product Or Component Type | die-cast empty control station |
| Thread Type | 3/4 NPT |
| Product Destination | for Ø 22 mm control and signalling units |
| Number Of Vertical Rows | 1 |
| Number Of Cut-Out | 1 cut-out |
| Resistance To Chemical Agents | special treatment can be obtained on request |
| Cut-Out Dimensions | Ø 22 mm |
| Colour Of Base Of Enclosure | grey RAL 7032 |
| Protective Treatment | TH |
| Ip Degree Of Protection | IP65 IEC 60529 || IP657 NF C 20-010 |
| Control Station Type | metal |
| Cad Overall Height | 80 mm |
| Number Of Horizontal Rows | 1 |
| Cad Overall Width | 80 mm |
| Electrical Shock Protection Class | class I IEC 60536 || class I NF C 20-030 |
| Colour Of Cover | grey RAL 7032 |
| Device Short Name | XAPG |
| Cad Overall Depth | 51.5 mm |
| Ambient Air Temperature For Operation | -25-70°C |
| Ambient Air Temperature For Storage | -40-70°C |
| Ik Degree Of Protection | IEC, IK07 EN 62262 |
| Compatibility Code | XAPG |
| Compatible with Series | XB4 |
| Panel Cutout Diameter | 22 mm |
| Overall Depth | 2 in |
| Compatible Contact Block Depth | 1.93 in |
| Overall Height | 3-1/8 in |
| Compatible Conduit Size - Maximum | 3/4 in |
| NEMA Enclosure Rating | 12, 13, 4 |
| Overall Width | 3-1/8 in |
| Package Quantity | 1 |
