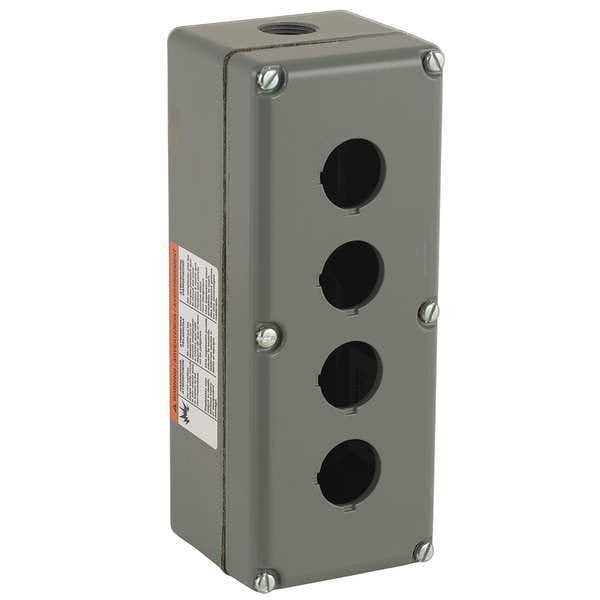

Caja de botones pulsadores, 30mm, 4 agujeros, Al.
| Item | Push Button Enclosure |
|---|---|
| Color | Gray |
| Material | Aluminum |
| Height | 9-1/4 in |
| Width | 3.63 in |
| Number of Columns | 1 |
| Number of Holes | 4 |
| Conduit Size | No Conduit Entrance Holes Provided |
| Depth | 3.53 in |
| Mounting Style | Surface |
| NEMA Rating | 1, 13, 3, 4 |
| Hole Size | 30 mm |
| Standards | RoHS |
| Dimensions | 9-1/4 in H x 3.63 in W x 3.53 in D |
| Ambient Air Temperature For Storage | -40-70°C |
| Device Short Name | 9001K |
| Product Destination | for Ø 30 mm control and signalling units |
| Cable Entry | 1 entry tapped for 3/4'' cable gland |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 3 || NEMA 4 || NEMA 6 |
| Overvoltage Category | II IEC 61140 |
| Protective Treatment | TH |
| Product Or Component Type | empty enclosure |
| Number Of Cut-Out | 4 cut-outs |
| Ambient Air Temperature For Operation | -25-70°C |
| Overall Height | 9-1/4 in |
| NEMA Enclosure Rating | 12, 4, 3, 13, 1, 6 |
| Overall Width | 3-5/8 in |
| Overall Depth | 3-1/2 in |
| Panel Cutout Diameter | 30 mm |
| Compatible with Series | 9001K, 9001KS |
| Compatible Conduit Size - Maximum | 3/4 in |
| Package Quantity | 1 |
