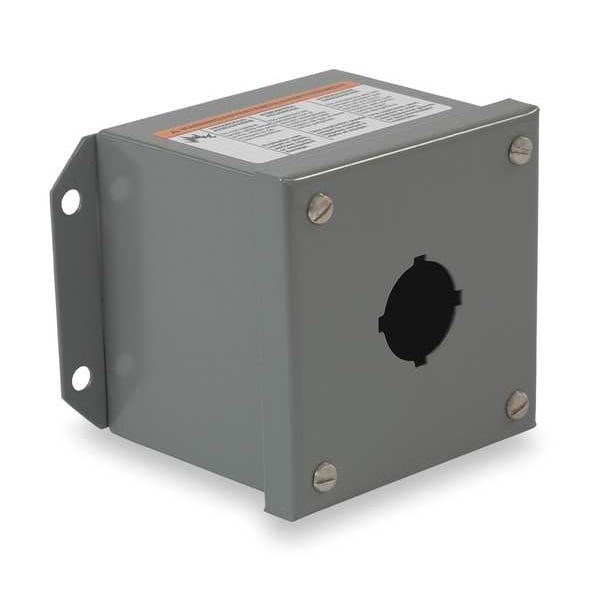

Recinto de botón de presión, 30mm, 5.24 pulgadas, de metal.
| Item | Push Button Enclosure |
|---|---|
| Color | Gray |
| Material | Steel |
| Height | 5.24 in |
| Width | 4.18 in |
| Number of Columns | 1 |
| NEMA Rating | 1, 13, 3 |
| Number of Holes | 1 |
| Contact Block Depth | 3.63 in |
| Hole Size | 30 mm |
| Depth | 3.63 in |
| Standards | RoHS |
| Mounting Style | Surface |
| Conduit Size | No Conduit Entrance Holes Provided |
| Dimensions | 5.24 in H x 4.18 in W x 3.63 in D |
| Number Of Cut-Out | 1 cut-out |
| Device Short Name | KY |
| Product Or Component Type | empty enclosure |
| Nema Degree Of Protection | NEMA 3/13 |
| Compatible Contact Block Depth | 3.63 in |
| Overall Depth | 3-5/8 in |
| Compatible with Series | 9001K |
| Panel Cutout Diameter | 30 mm |
| Compatible Conduit Size - Maximum | No Conduit Entrance Holes Provided |
| NEMA Enclosure Rating | 3, 13 |
| Overall Width | 4-3/16 in |
| Overall Height | 5-1/4 in |
| Package Quantity | 1 |
