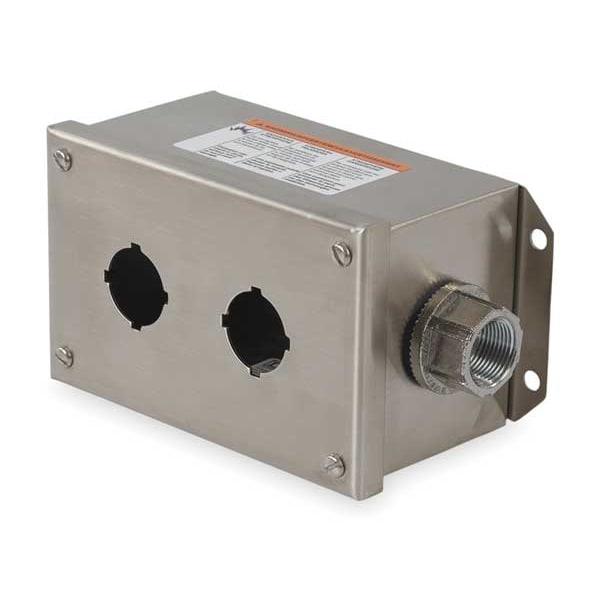

Recinto para botón de presión, 7.74 pulgadas de altura, 2 orificios.
| Item | Push Button Enclosure |
|---|---|
| Material | Stainless Steel |
| Height | 7.74 in |
| Width | 4.18 in |
| Number of Holes | 2 |
| Number of Columns | 1 |
| Hole Size | 30 mm |
| Depth | 3.63 in |
| Mounting Style | Surface |
| Conduit Size | No Conduit Entrance Holes Provided |
| Standards | RoHS |
| Contact Block Depth | 3.63 in |
| NEMA Rating | 1, 13, 3, 4, 4X |
| Dimensions | 7.74 in H x 4.18 in W x 3.63 in D |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 3 || NEMA 4 || NEMA 4X |
| Ambient Air Temperature For Operation | -25-70°C |
| Product Destination | for Ø 30 mm control and signalling units |
| Product Or Component Type | empty enclosure |
| Number Of Cut-Out | 2 cut-outs |
| Protective Treatment | TH |
| Ambient Air Temperature For Storage | -40-70°C |
| Device Short Name | 9001K |
| Overvoltage Category | II IEC 61140 |
| Cable Entry | 1 entry tapped for 3/4'' knockout |
| Overall Height | 7-3/4 in |
| Compatible Conduit Size - Maximum | 3/4 in |
| Overall Width | 4-3/16 in |
| Overall Depth | 3-5/8 in |
| Compatible Contact Block Depth | 3.63 in |
| NEMA Enclosure Rating | 4X, 12, 4, 3, 1 |
| Compatible with Series | 9001K, 9001KS |
| Panel Cutout Diameter | 30 mm |
| Package Quantity | 1 |
