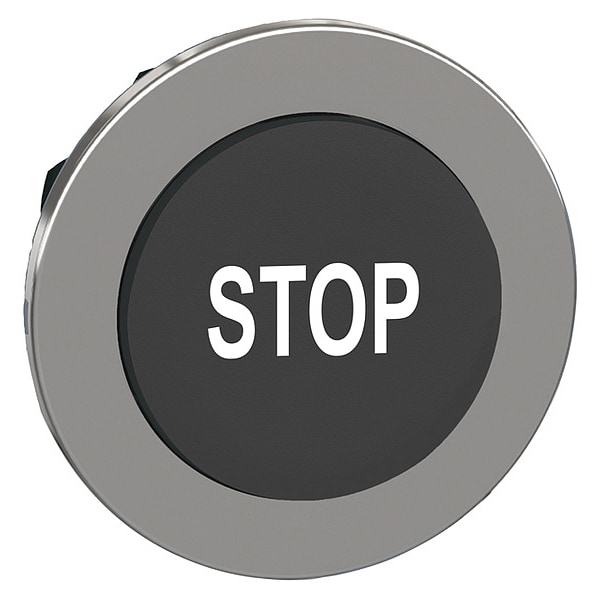

Cabeza de botón pulsador, 30 mm, negro.
| Action | Momentary |
|---|---|
| Size | 30 mm |
| Head Material | Metal |
| Legend/Background Color | White, Black |
| Lamp Type | Not Applicable |
| Color | Black |
| Legend | Stop |
| Number of Operators | 1 |
| Item | Extended Push Button |
| Bezel Material | Metal |
| Lamp Module Type | Not Applicable |
| Standards | CCC, CE, Class I IEC 60536, CSA C22.2 No.14, EAC, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, ISO 20653, JIS C8201-1, JIS C8201-5-1, REACH Free of SVHC, RoHS, Type 12 UL 50E, Type 13 UL 50E, Type 4 UL 50E, Type 4X UL 50E, UL 508 |
| IP Rating | IP66, IP67, IP69, IP69K |
| Series | XB4 |
| Basic Material | Metal |
| Terminal Connection | Not Applicable |
| Features | Snap-Fit Assembly, Visually Distinct at a Distance |
| Product Type | Push Button Operators |
| Product Certifications | UL Listed || CSA || CCC || EAC |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| Electrical Composition Code | C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting |
| Mechanical Durability | 10,000,000 cycle |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E |
| Shape Of Signaling Unit Head | round |
| Type Of Operator | spring return |
| Operator Profile | black projecting, STOP white) |
| Device Short Name | ZB4F |
| Overvoltage Category | class I IEC 60536 |
| Protective Treatment | TH |
| Cad Overall Height | 36.6 mm |
| Ambient Air Temperature For Storage | -40-70°C |
| Mounting Diameter | 30.5 mm |
| Cad Overall Width | 36.6 mm |
| Head Type | built-in, flush |
| Device Presentation | basic element |
| Ambient Air Temperature For Operation | -40-70°C |
| Cad Overall Depth | 33 mm |
| Product Or Component Type | head for non-illuminated push-button |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6 |
| Panel Cutout Diameter | 30 mm |
| Legend Background Color | Black |
| Hazardous Location Specification | Not Rated |
| Overall Width | 1.44 in |
| Operating Temperature - Maximum | 158 deg F |
| Mushroom Head Diameter | Not Applicable |
| Operator Material | Metal |
| Manufacturer Warranty Length | 18 mo |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 2 |
| Head Color | Black |
| Number of Indicator Lights | 0 |
| Overall Depth | 1.3 in |
| Maintained Action Release | Not Applicable |
| Lamp Voltage - Maximum | Not Applicable |
| Legend Color | White |
| Overall Height | 1.44 in |
| Operating Temperature - Minimum | -40 deg F |
| Push Button Style | Extended |
| Operator Illumination | Non-Illuminated |
| Package Quantity | 1 |
