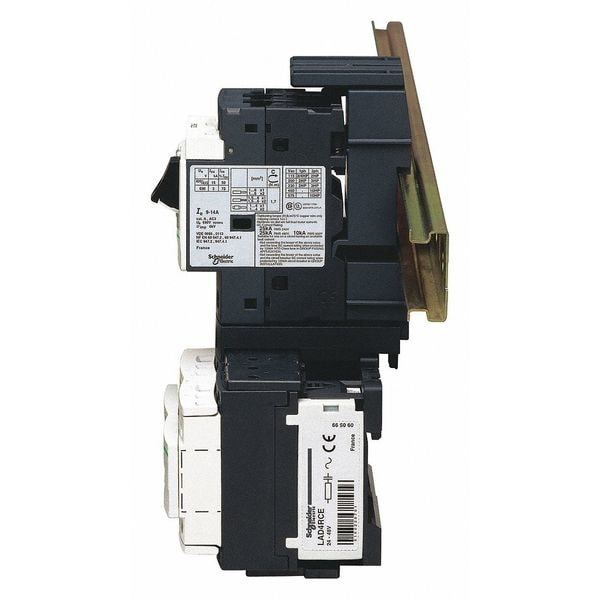

Clip de retención térmica en contactor D0938 3P 24/
| Item | Rc Circlip On Contactor D0938 3P 24/ |
|---|---|
| Standards | IEC 60947-5-1 || EN 60947-5-1 || CSA C22.2 No 60947-5-1 || UL 60947-5-1 || GB/T 14048.5 |
| Ip Degree Of Protection | IP2XIEC 60529 |
| Mounting Location | side |
| Suppressor Technology | RC circuit |
| Mounting Mode | by clips |
| Device Short Name | LAD4 |
| Range | TeSys |
| Maximum Peak Voltage | 3 Uc |
| Ambient Air Temperature For Operation | -25-55°C |
| Product Compatibility | 3P LC1D09 to D38 || 4P LC1DT20 to DT40 || 4P LC1D098 to D258 || CAD32, CAD50 |
| Ambient Air Temperature For Storage | -40-80°C |
| Product Certifications | UL || CSA |
| Product Or Component Type | module |
| [Uc] Control Circuit Voltage | 24 to 48 V AC |
| Package Quantity | 1 |
