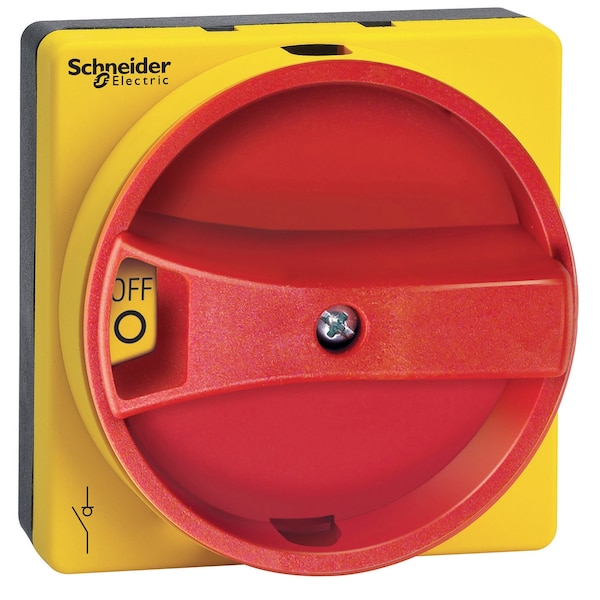

Manija roja empotrada fijada con tornillo.
| Item | Rotary Handle |
|---|---|
| Disconnect Switch Size | 16 A |
| Description/Special Features | Mercury free, Toxic heavy metal free |
| Includes | Not Found |
| For Use With | TeSys VLS Series |
| Standards | cULus Listed, Meets IEC 60947-3 |
| Material | Metal |
| Duty | Heavy Duty |
| Depth | 1.81 in |
| Height | 2.56 in |
| Width | 2.56 in |
| Features | Opening for 5 mm (0.2 in) Shaft Width, Recessed Selector |
| Shaft Length | 5 mm |
| Mounting Mechanism | Door |
| NEMA Enclosure Rating | 1, 12, 3R, 4, 4X |
| Compatible with Manufacturer Model Number | VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063D2, VLS3P063R1, VLS3P080D2, VLS3P100D2, VLS3P125D2 |
| Environment | Indoor, Outdoor |
| For Disconnect Switch Size | 100 A, 125 A, 16 A, 25 A, 32 A, 40 A, 63 A, 80 A |
| Color | Red, Yellow |
| Product Type | Replacement Handle |
| Compatible Manufacturer Part Number | VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063D2, VLS3P063R1, VLS3P080D2, VLS3P100D2, VLS3P125D2 |
| Compatible with Manufacturer Part Number | VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063D2, VLS3P063R1, VLS3P080D2, VLS3P100D2, VLS3P125D2 |
| Compatible with Manufacturer Model Number [NEW] | VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063D2, VLS3P063R1, VLS3P080D2, VLS3P100D2, VLS3P125D2 |
| Compatible Manufacturer Model Number | VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063D2, VLS3P063R1, VLS3P080D2, VLS3P100D2, VLS3P125D2 |
| For Use with Mfr. Model Number | VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063D2, VLS3P063R1, VLS3P080D2, VLS3P100D2, VLS3P125D2 |
| Tightening Torque | 2.3 N.m |
| Device Short Name | VLSH |
| Handle Front Plate Colour | yellow |
| Nema Degree Of Protection | NEMA 1 || NEMA 4 || NEMA 4X |
| Marking | 0 - 1 || OFF-ON |
| Handle Colour | red |
| Range Compatibility | TeSys (TeSys VARIO LS) VLS3P |
| Base Dimension | 65 mm x 65 mm |
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
| Product Or Component Type | rotary handle |
| Fixing Mode | by 4 screws |
| Ip Degree Of Protection | IP65 |
| Package Quantity | 1 |
