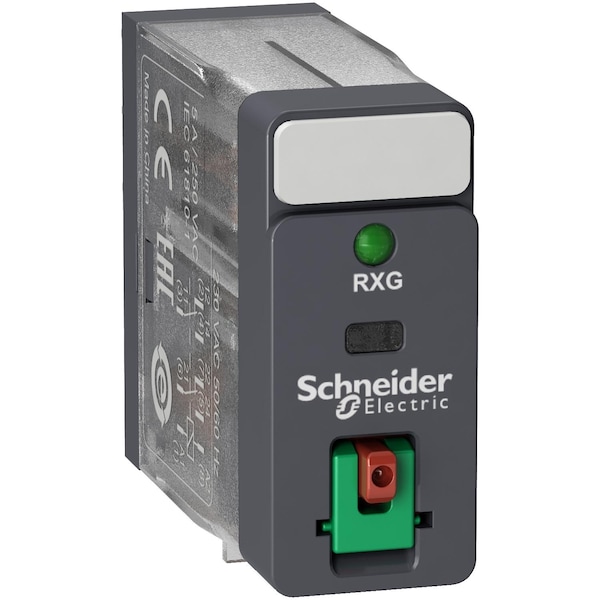

Relevador, 120V CA, 2 contactos normalmente abiertos.
| Item | Relay |
|---|---|
| Coil Volts | 120V AC |
| AC Contact Rating - Relay | 5A @ 250V AC |
| Contact Form - Relay | 2 C/O |
| Mounting - Relay | Any Position |
| Power Consumption - Relay | 0.82 VA |
| Contact Material | Silver Alloy |
| Features | Lockable Test Button; Flag Signalling; Status LED |
| Standards | CSA C22.2 No 14; UL 508; IEC 61810-1; CE; EAC; DNV-GL |
| Status Indicator | No Indicator |
| Series | Harmony(TM) RXG Series |
| Coil Resistance | 6,300 ohms |
| Dielectric Strength | 1000 V AC between contacts with micro disconnection; 5000 V AC between coil and contact with reinforced insulation; 3000 V AC between poles with basic insulation |
| Operating Temp. Range | -40-70°C |
| Operating Time | 20 msec |
| Switching Power | Max 1250 VA; Min 50 mW at 10 mA, 5 V DC |
| Switching Voltage | 250 V AC/30 V DC |
| Current Rating | 5 A 30 V DC) UL; 5 A 30 V DC) IEC; 5 A 250 V AC) IEC; 5 A 250 V AC) UL |
| Protection Category | RT I |
| Maximum Switching Capacity | 1250 VA |
| Operating Rate | <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load |
| Vibration Resistance | 3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation |
| Minimum Switching Capacity | 50 mW at 10 mA, 5 V DC |
| Range of Product | Harmony Electromechanical Relays |
| Shock Resistance | 20 gn in operation, 100 gn not in operation |
| Load Current | 5 A 250 V AC |
| Status Led | with |
| Insulation Resistance | 1000 MOhm at 500 V DC |
| [Ie] Rated Operational Current | 5 A 30 V DC) UL, 5 A 30 V DC) IEC, 5 A 250 V AC) IEC, 5 A 250 V AC) UL |
| Utilisation Coefficient | 0.2 |
| Series Name | interface relay |
| Control Type | Lockable test button |
| Local Signalling | Flag |
| Ip Degree of Protection | IP40 |
| Device Presentation | complete product |
| Ambient Air Temperature For Storage | -40-85°C |
| Device Short Name | RXG |
| Test Levels | level A group mounting |
| Mechanical Durability | 10,000,000 cycle |
| Resistance | 6300 Ohm +/- 10 % |
| Relative Humidity | 10-85 % |
| [Ui] Rated Insulation Voltage | 250 V IEC, 300 V CSA, 300 V UL |
| Control Circuit Voltage Limits | 0.8...1.1 Uc AC |
| [Ithe] Conventional Enclosed Thermal Current | 5 A -40-55°C |
| Ambient Air Temperature For Operation | -40-70°C |
| Electrical Durability | 100000 cycles NO resistive at 55°C, 100000 cycles NC resistive at 55°C |
| Drop-Out Voltage Threshold | >= 0.3 Uc AC |
| Maximum Switching Voltage | 250 V AC, 30 V DC |
| Pollution Degree | 2 |
| Overvoltage Category | III |
| [Uc] Control Circuit Voltage | 120 V AC 50/60 Hz |
| Torque Value | 0.8 N.m |
| Average Consumption | 0.82 VA 60 Hz |
| Product or Component Type | plug-in relay |
| Colour of Cover | standard |
| Package Quantity | 10 |
