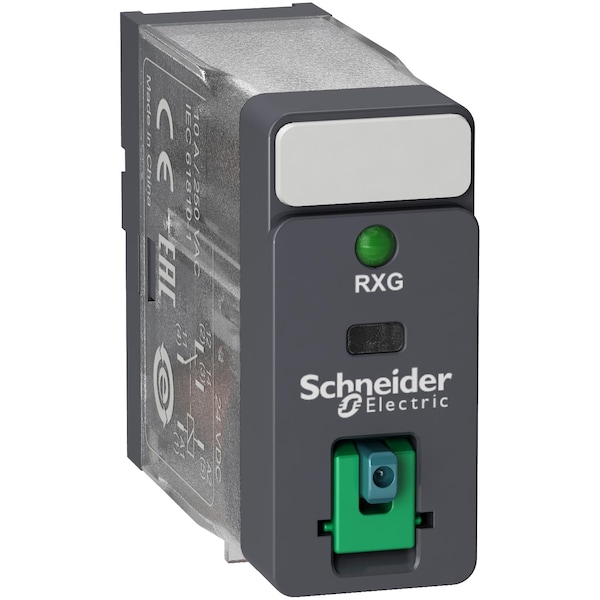

Relé 1Co 10A, 250VCA, 24VCD, Bobina Led+Ltb, 24V CC Voltios, 1 C/Abierto
| Item | Relay 1Co 10A,250VAC,24VDC,Coil Led+Ltb |
|---|---|
| Coil Volts | 24V DC |
| AC Contact Rating - Relay | 10A @ 250V AC |
| Contact Form - Relay | 1 C/O |
| Mounting - Relay | Any Position |
| Contact Material | Silver Alloy |
| Features | Lockable Test Button; Flag Signalling; Status LED |
| Standards | IEC 61810-1; CSA C22.2 No 14; UL 508; CE; EAC; DNV-GL |
| Current Rating | 10 A 30 V DC) UL; 10 A 30 V DC) IEC; 10 A 250 V AC) IEC; 10 A 250 V AC) UL |
| Operating Temp. Range | -40-70°C |
| Switching Power | Max 2500 VA; Min 500 mW at 100 mA, 5 V DC |
| Coil Resistance | 1,100 ohms |
| Dielectric Strength | 1000 V AC between contacts with micro disconnection; 5000 V AC between coil and contact with reinforced insulation |
| Series | RXG; interface relay |
| Operating Time | 20 msec |
| Switching Voltage | 250 V AC/30 V DC |
| Protection Category | RT I |
| Ambient Air Temperature For Operation | -40-70°C |
| Pollution Degree | 2 |
| Device Presentation | complete product |
| Drop-Out Voltage Threshold | >= 0.1 Uc DC |
| Load Current | 10 A 250 V AC |
| Local Signalling | Flag |
| Electrical Durability | 100000 cycles NO resistive at 55°C, 100000 cycles NC resistive at 55°C |
| Shock Resistance | 20 gn in operation, 100 gn not in operation |
| Resistance | 1100 Ohm +/- 10 % |
| [Uc] Control Circuit Voltage | 24 V DC |
| Minimum Switching Capacity | 500 mW at 100 mA, 5 V DC |
| [Ithe] Conventional Enclosed Thermal Current | 10 A -40-55°C |
| Relative Humidity | 10-85 % |
| Status Led | with |
| Ambient Air Temperature For Storage | -40-85°C |
| Series Name | interface relay |
| Test Levels | level A group mounting |
| Insulation Resistance | 1000 MOhm at 500 V DC |
| [Ui] Rated Insulation Voltage | 250 V IEC, 300 V CSA, 300 V UL |
| Colour of Cover | standard |
| Product or Component Type | plug-in relay |
| Ip Degree of Protection | IP40 |
| Control Type | Lockable test button |
| Operating Rate | <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load |
| Torque Value | 0.8 N.m |
| Device Short Name | RXG |
| Maximum Switching Voltage | 250 V AC, 30 V DC |
| Utilisation Coefficient | 0.2 |
| Overvoltage Category | III |
| Mechanical Durability | 10,000,000 cycle |
| [Ie] Rated Operational Current | 10 A 30 V DC) UL, 10 A 30 V DC) IEC, 10 A 250 V AC) IEC, 10 A 250 V AC) UL |
| Range of Product | Harmony Electromechanical Relays |
| Vibration Resistance | 3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation |
| Maximum Switching Capacity | 2500 VA |
| Package Quantity | 10 |
