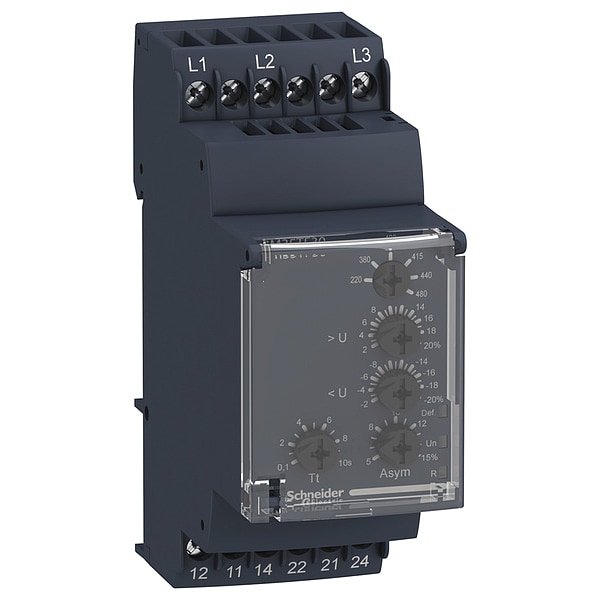

Relevador, de 208 a 480V AC, 230V AC de voltaje de bobina, 1 contacto normalmente abierto.
| Item | Relay |
|---|---|
| Coil Volts | 208 to 480V AC, 230V AC |
| DC Contact Rating - Relay | 5 A @ 250 V |
| Contact Form - Relay | 1 C/O |
| Mounting - Relay | DIN Rail |
| Power Consumption - Relay | 5 VA |
| Body Height - Relay | 3.54 in |
| Body Width - Relay | 1.38 in |
| Body Depth - Relay | 2.83 in |
| Overall Height - Relay | 3.54 in |
| Features | IP Degree of Protection: IP40; Mercury Free: Yes, Toxic Heavy Metal Free: Yes |
| Standards | C-Tick, CSA Certified, EN/IEC 60255-1, EN/IEC 61000-6-4, EU RoHS, GL, GOST, Reach Regulation, UL Listed |
| Input Voltage | 208 to 480V AC |
| Contact Form | SPDT |
| Housing Material | Plastic |
| Contact Rating (DC) | 5 A @ 250 V |
| Minimum Switching Current | 10 mA |
| Flat Pin Width | Not Applicable |
| Restart | Auto |
| IP Rating | IP30 |
| Number of Pins | 12 |
| Maximum Switching Current | 5 A |
| Overall Depth | 2.83 in |
| Body Height | 3.54 in |
| Restart Time Delay | 1.5 sec |
| Mechanical Operating Durability | 30,000,000 |
| Body Width | 1.38 in |
| Contact Rating (AC) | 5 A @ 250V |
| Maximum Operating Temperature | 122 deg F |
| Power Consumption | 1,250 VA |
| Maximum Switching Voltage | 250V AC/DC |
| Mounting Style | DIN Rail |
| Maximum Switching Capacity | 1,250 VA |
| Minimum Operating Temperature | -4 deg F |
| Current Rating | 5 A |
| Body Depth | 2.83 in |
| Electrical Operating Durability | 100,000 |
| Monitored Parameters | Overcurrent, Phase Failure, Phase Sequence, Undercurrent |
| Frequency | 50/60 Hz |
| Operating Temp. Range | -20-50°C |
| Item - Relay | Plug In Relay |
| Switching Power | 1250 VA |
| Dielectric Strength | 2 kV AC 50 Hz shock wave 4 kV) |
| Switching Voltage | 250 V AC/DC |
| Status Indicator | LED Indicator |
| Package Quantity | 1 |
