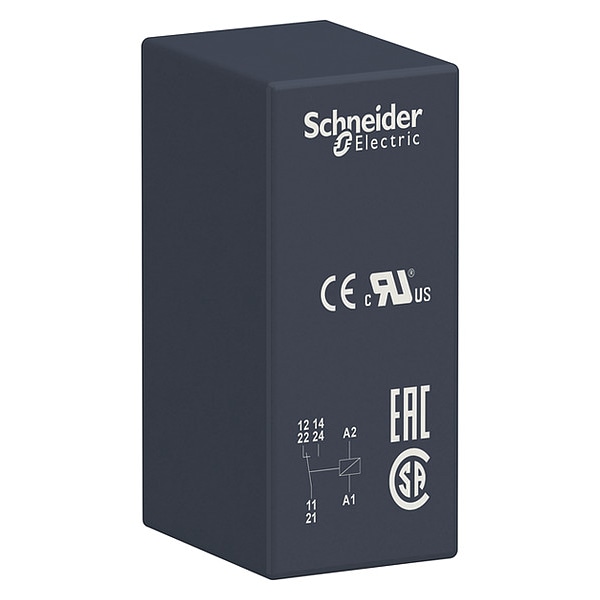

Relé, bobina de 220V AC, cuadrado, 8 pines, 1 contacto normalmente abierto.
| Item | Relay |
|---|---|
| Coil Volts | 220V AC |
| AC Contact Rating - Relay | 16A @ 250V |
| DC Contact Rating - Relay | 16 A @ 28 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 8 |
| Contact Form - Relay | 1 C/O |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 0.75 VA |
| Contact Material | Silver Alloy |
| Body Height - Relay | 1.14 in |
| Body Width - Relay | 0.49 in |
| Body Depth - Relay | 0.62 in |
| Overall Height - Relay | 1.14 in |
| Features | Clear Cover |
| Standards | CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed |
| Response Time | 20 msec |
| Electrical Connection | Quick-Connect |
| Input Voltage | 330 V AC |
| Status Indicator | None |
| Contact Form | SPDT |
| Minimum Switching Current | 10 mA |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Mounting Style | Plug-In |
| Body Height | 1.14 in |
| Pin Shape | Flat |
| Push-To-Test Method | No Button |
| Number of Pins | 8 |
| Coil Voltage | 220 V AC |
| Mechanical Operating Durability | 10,000,000 |
| Contact Rating (DC) | 16 A @ 28 V |
| Coil Resistance | 33,000 ohms |
| Overall Depth | 0.77 in |
| Power Consumption | 0.75 VA |
| Body Width | 0.49 in |
| Flat Pin Width | Not Applicable |
| IP Rating | IP40 |
| For Use With | Hard-Wired Logic Automated Systems |
| Frequency | 50/60 Hz |
| Weight | 0.48 oz |
| Current Rating | 16 A |
| Series | Harmony(TM) RSB Series |
| Maximum Operating Temperature | 158 deg F |
| Electrical Operating Durability | 100,000 |
| Minimum Operating Temperature | -40 deg F |
| Contact Rating (AC) | 16 A @ 250V |
| Dielectric Strength | 1,000V AC Between Contacts, 2,500V AC Between Poles, 5,000V AC Between Coil and Contacts |
| Maximum Switching Voltage | 300 V DC |
| Sealing | Enclosed |
| Body Depth | 0.62 in |
| Base Shape | Square |
| Push To Test | No |
| Switching Voltage | 12/300 V DC |
| Switching Power | Max 4000 VA/448 W; Min 120 mW 10 mA, 12 V |
| Protection Category | RT I |
| Operating Temp. Range | -40-70°C AC) |
| Item - Relay | Plug In Relay |
| Operating Time | 20 ms operating || 20 ms reset |
| Package Quantity | 1 |
