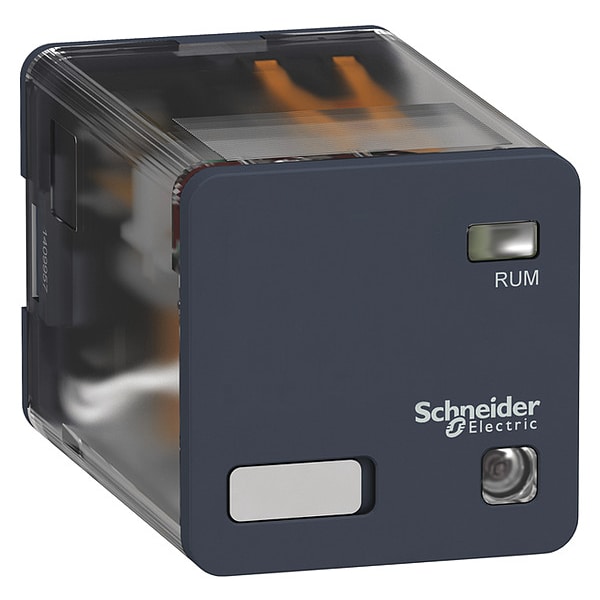

Relevador, 230V AC en bobina, octal, 8 pines, doble polo doble tiro
| Item | Relay |
|---|---|
| Coil Volts | 230V AC |
| AC Contact Rating - Relay | 10A @ 250/277V @ 250V, 5A |
| DC Contact Rating - Relay | 10 A @ 28 V, 10 A @ 30 V, 5 A @ 28 V |
| Base Type - Plug In Relay | Octal |
| Number of Pins - Relay | 8 |
| Contact Form - Relay | DPDT |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 3 VA |
| Contact Material | Silver Alloy |
| Body Height - Relay | 1.39 in |
| Body Width - Relay | 1.37 in |
| Body Depth - Relay | 2.2 in |
| Overall Height - Relay | 1.39 in |
| Features | IP Degree of Protection: IP40; Mercury Free: Yes, Toxic Heavy Metal Free: Yes |
| Standards | CSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed |
| Input Voltage | 253 V AC |
| Status Indicator | Mechanical Flag, LED Indicator |
| Socket Code | A |
| Response Time | 20 msec |
| Contact Form | DPDT |
| Electrical Connection | Quick-Connect |
| Push-To-Test Method | No Button |
| Coil Resistance | 6,800 ohms |
| Minimum Operating Temperature | -40 deg F |
| Frequency | 50/60 Hz |
| Body Height | 1.39 in |
| Sealing | Enclosed |
| Power Consumption | 3 VA |
| Pin Shape | Round |
| Flat Pin Width | Not Applicable |
| Contact Rating (AC) | 10 A @ 250V |
| Current Rating | 10 A |
| IP Rating | IP40 |
| Maximum Switching Voltage | 250 V |
| Weight | 3.04 oz |
| Number of Pins | 8 |
| Body Depth | 2.2 in |
| Contact Rating (DC) | 10 A @ 28 V |
| For Use With | Hard-Wired Logic Automated Systems |
| Dielectric Strength | 1,500V AC Between Contacts with Micro Disconnection, 2,000V AC Between Poles with Basic, 2,500V AC Between Coil and Contact with Reinforced |
| Maximum Operating Temperature | 131 deg F |
| Mechanical Operating Durability | 5,000,000 |
| Coil Voltage | 230 V AC |
| Electrical Operating Durability | 100,000 |
| Mounting Style | Plug-In |
| Body Width | 1.37 in |
| Minimum Switching Current | 10 mA |
| Overall Depth | 1.39 in |
| Series | Harmony(TM) RUM Series |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Base Shape | Octal |
| Switching Voltage | 250 V IEC |
| Switching Power | Max 2500 VA/280 W; Min 170 mW 10 mA, 17 V |
| Operating Time | 20 ms at nominal voltage |
| Push To Test | No |
| Protection Category | RT I |
| Item - Relay | Plug In Relay |
| Operating Temp. Range | -40-55°C |
| Package Quantity | 1 |
