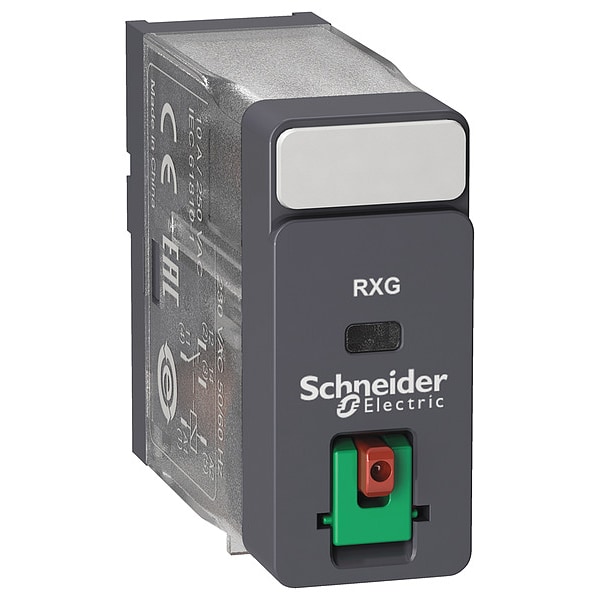

Relevador, 230V AC en bobina, en forma de T, 5 pines, un polo doble tiro (SPDT).
| Item | Relay |
|---|---|
| Coil Volts | 230V AC |
| AC Contact Rating - Relay | 10A @ 250V |
| DC Contact Rating - Relay | 10 A @ 30 V |
| Base Type - Plug In Relay | T-Shape |
| Number of Pins - Relay | 5 |
| Contact Form - Relay | SPDT |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 0.82 VA |
| Contact Material | Silver Alloy |
| Body Height - Relay | 1.13 in |
| Body Width - Relay | 0.51 in |
| Body Depth - Relay | 1.36 in |
| Overall Height - Relay | 1.2 in |
| Features | IP Degree of Protection: IP40; Mercury Free: Yes, Toxic Heavy Metal Free: Yes |
| Standards | CE Certified, CSA C22.2 No 14, CSA Certified, DNV-GL, EAC, IEC 61810-1, UL 508, UL Listed |
| Contact Form | SPDT |
| Input Voltage | 1.1 V AC |
| Response Time | 20 msec |
| Electrical Connection | Quick-Connect |
| Socket Code | L |
| Status Indicator | Mechanical Flag |
| Frequency | 50/60 Hz |
| Flat Pin Width | 0.19 in |
| Overall Depth | 1.69 in |
| Body Height | 1.14 in |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Series | Harmony(TM) RXG Series |
| Number of Pins | 5 |
| Body Width | 0.51 in |
| Contact Rating (AC) | 10 A @ 250V |
| Minimum Operating Temperature | -40 deg F |
| Power Consumption | 0.82 VA |
| Maximum Switching Voltage | 250 V AC, 30 V DC |
| Electrical Operating Durability | 100,000 |
| Sealing | Enclosed |
| Minimum Switching Current | 100 mA |
| For Use With | Hard-Wired Logic Automated Systems |
| Maximum Operating Temperature | 158 deg F |
| Weight | 0.64 oz |
| Mechanical Operating Durability | 10,000,000 |
| Base Shape | Square |
| Push-To-Test Method | Lockable |
| Insulation Resistance | 1,000 megaohm |
| Pin Shape | Flat |
| Body Depth | 1.36 in |
| Current Rating | 10 A |
| IP Rating | IP40 |
| Contact Rating (DC) | 10 A @ 30 V |
| Dielectric Strength | 1,000V AC Between Contacts with Micro Disconnection, 5,000V AC Between Coil and Contact with Reinforced Insulation |
| Coil Voltage | 230 V AC |
| Coil Resistance | 23,500 ohms |
| Mounting Style | Plug-In |
| Push To Test | Lockable |
| Protection Category | RT I |
| Item - Relay | Plug In Relay |
| Switching Power | Max 2500 VA; Min 500 mW at 100 mA, 5 V DC |
| Operating Time | 20 msec |
| Switching Voltage | 250 V AC/30 V DC |
| Operating Temp. Range | -40-70°C |
| Package Quantity | 1 |
