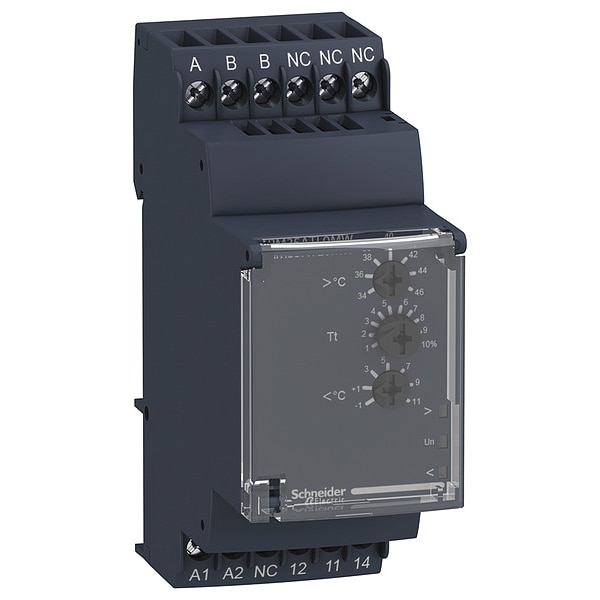

Relevador, 24 a 240V CA/CD de voltaje de bobina, 1 contacto normalmente abierto.
| Item | Relay |
|---|---|
| Coil Volts | 24 to 240V AC/DC |
| Contact Form - Relay | 1 C/O |
| Mounting - Relay | DIN Rail |
| Power Consumption - Relay | 3.5 VA |
| Contact Material | Cadmium Free |
| Body Height - Relay | 3.54 in |
| Body Width - Relay | 1.38 in |
| Body Depth - Relay | 2.83 in |
| Overall Height - Relay | 3.54 in |
| Features | IP Degree of Protection: IP40; Mercury Free: Yes, Toxic Heavy Metal Free: Yes |
| Standards | C-Tick, CSA Certified, GL, GOST, IEC 60255-6, NF EN 60255-6, UL Listed |
| Response Time | 3.5 sec |
| Input Voltage | 24 to 240V AC/DC |
| Status Indicator | LED Indicator |
| Contact Form | SPDT |
| Electrical Connection | Screw Terminal |
| For Use With | Hard-Wired Logic Automated Systems |
| Mechanical Operating Durability | 30,000,000 |
| Electrical Operating Durability | 100,000 |
| Body Depth | 2.83 in |
| Minimum Operating Temperature | -4 deg F |
| Mounting Style | DIN Rail |
| Number of Pins | 12 |
| Maximum Operating Temperature | 122 deg F |
| Power Consumption | 3.5 VA |
| Body Width | 1.38 in |
| Body Height | 3.54 in |
| Frequency | 50/60 Hz |
| Overall Depth | 2.99 in |
| Current Rating | 5 A |
| Switching Voltage | 250 V AC/DC |
| Item - Relay | Plug In Relay |
| Switching Power | 1250 VA |
| Operating Temp. Range | -20-50°C |
| Package Quantity | 1 |
