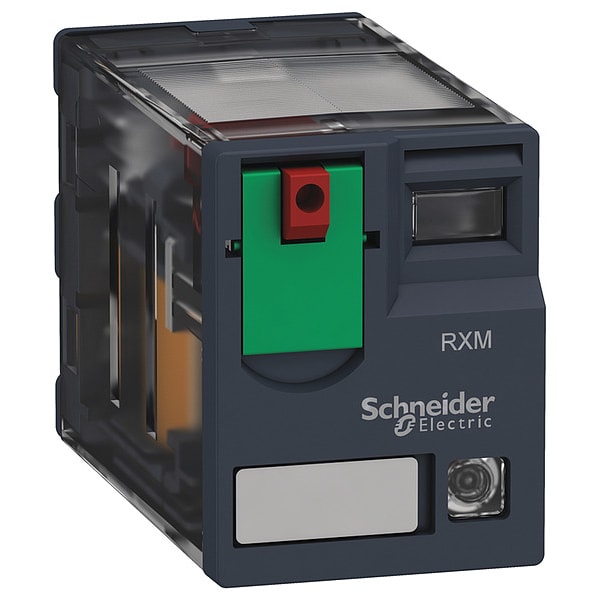

Relevador, 48V de voltaje de bobina de CA, cuadrado, 14 pines, 4PDT.
| Item | Relay |
|---|---|
| Coil Volts | 48V AC |
| AC Contact Rating - Relay | 3A @ 250V, 6A @ 250/277V |
| DC Contact Rating - Relay | 3 A @ 28 V, 6 A @ 28 V, 8 A @ 30 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 14 |
| Contact Form - Relay | 4PDT |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 1.2 VA |
| Contact Material | Silver Alloy |
| Body Height - Relay | 1.06 in |
| Body Width - Relay | 0.82 in |
| Body Depth - Relay | 1.57 in |
| Overall Height - Relay | 1.06 in |
| Features | IP Degree of Protection: IP40; Mercury Free: Yes, Toxic Heavy Metal Free: Yes |
| Standards | CE Certified, CSA C22.2 No 14, CSA Certified, EN/IEC 61810-1, GOST, Lloyd's, UL 508, UL Listed |
| Status Indicator | Mechanical Flag, LED Indicator |
| Socket Code | G |
| Contact Form | 4PDT |
| Input Voltage | 52.8 V AC |
| Response Time | 20 msec |
| Electrical Connection | Quick-Connect |
| Dielectric Strength | 1,300V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact with Basic Insulation, 2,000V AC Between Poles with Basic Insulation |
| Body Width | 0.82 in |
| Mounting Style | Plug-In |
| Pin Shape | Flat |
| Maximum Operating Temperature | 131 deg F |
| Power Consumption | 1.2 VA |
| Sealing | Enclosed |
| Number of Pins | 14 |
| Body Depth | 1.57 in |
| Minimum Operating Temperature | -40 deg F |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Flat Pin Width | 0.09 in |
| Minimum Switching Current | 10 mA |
| Overall Depth | 1.8 in |
| Push-To-Test Method | Lockable |
| Mechanical Operating Durability | 10,000,000 |
| Body Height | 1.06 in |
| Maximum Switching Voltage | 250 V |
| Coil Voltage | 48 V AC |
| Electrical Operating Durability | 100,000 |
| For Use With | RXZE Socket |
| Coil Resistance | 710 ohms |
| Contact Rating (AC) | 6 A @ 250V |
| Current Rating | 6 A |
| Weight | 1.28 oz |
| IP Rating | IP40 |
| Contact Rating (DC) | 6 A @ 28 V |
| Series | Harmony(TM) RXM Series |
| Frequency | 50/60 Hz |
| Base Shape | Square |
| Protection Category | RT I |
| Switching Power | Max 1500 VA/168 W; Min 170 mW 10 mA, 17 V |
| Push To Test | Lockable |
| Operating Time | 20 msec |
| Operating Temp. Range | -40-55°C |
| Switching Voltage | 250 V IEC |
| Item - Relay | Plug In Relay |
| Package Quantity | 1 |
