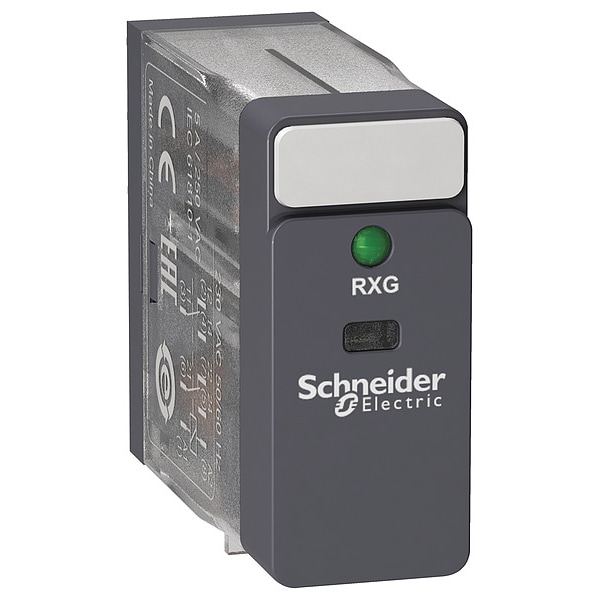

Relevador, 48V de Voltaje de Bobina CA, Cuadrado, 8 Pines, DPDT
| Item | Relay |
|---|---|
| Coil Volts | 48V AC |
| AC Contact Rating - Relay | 5A @ 250V |
| DC Contact Rating - Relay | 5 A @ 30 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 8 |
| Contact Form - Relay | DPDT |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 0.82 VA |
| Contact Material | Silver Alloy |
| Body Height - Relay | 1.18 in |
| Body Width - Relay | 0.51 in |
| Body Depth - Relay | 1.36 in |
| Overall Height - Relay | 1-1/4 in |
| Features | IP Degree of Protection: IP40; Mercury Free: Yes, Toxic Heavy Metal Free: Yes |
| Standards | CE Certified, CSA C22.2 No 14, CSA Certified, DNV-GL, EAC, IEC 61810-1, UL 508, UL Listed |
| Contact Form | DPDT |
| Electrical Connection | Quick-Connect |
| Response Time | 20 msec |
| Socket Code | K |
| Status Indicator | Mechanical Flag, LED Indicator |
| Input Voltage | 1.1 V AC |
| Frequency | 50/60 Hz |
| Power Consumption | 0.82 VA |
| Sealing | Enclosed |
| Weight | 0.64 oz |
| Overall Depth | 1.61 in |
| Minimum Operating Temperature | -40 deg F |
| Mechanical Operating Durability | 10,000,000 |
| Body Width | 0.51 in |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Coil Resistance | 1,100 ohms |
| Body Depth | 1.36 in |
| Body Height | 1.14 in |
| Electrical Operating Durability | 100,000 |
| Dielectric Strength | 1,000V AC Between Contacts with Micro Disconnection, 3,000V AC Between Poles with Basic Insulation, 5,000V AC Between Coil and Contact with Reinforced Insulation |
| Number of Pins | 8 |
| IP Rating | IP40 |
| Base Shape | Square |
| Contact Rating (DC) | 5 A @ 30 V |
| Contact Rating (AC) | 5 A @ 250V |
| Insulation Resistance | 1,000 megaohm |
| Coil Voltage | 48 V AC |
| Mounting Style | Plug-In |
| Maximum Operating Temperature | 158 deg F |
| Pin Shape | Flat |
| Series | Harmony(TM) RXG Series |
| Maximum Switching Voltage | 250 V AC, 30 V DC |
| Current Rating | 5 A |
| Flat Pin Width | 0.09 in |
| For Use With | Hard-Wired Logic Automated Systems |
| Minimum Switching Current | 10 mA |
| Operating Temp. Range | -40-70°C |
| Switching Power | Max 1250 VA; Min 50 mW at 10 mA, 5 V DC |
| Protection Category | RT I |
| Switching Voltage | 250 V AC/30 V DC |
| Operating Time | 20 msec |
| Item - Relay | Plug In Relay |
| Package Quantity | 1 |
