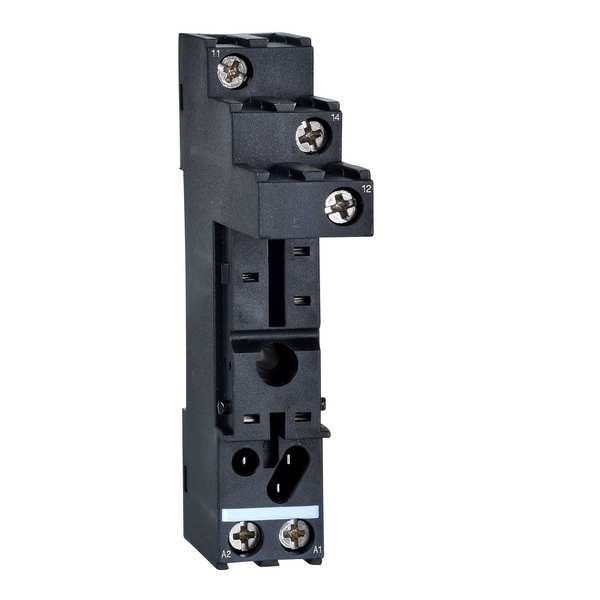

Rele de enchufe, 250VAC, 12A, Rsb+Opciones, Paquete de 10
| Item - Relay | Relay Socket |
|---|---|
| Socket Type - Relay | Standard |
| Base Style - Relay Socket | Square |
| Contact Form - Relay Socket | DPDT |
| Mounting - Relay | Plug In |
| Electrical Connection - Relay Socket | Screw |
| Number of Pins - Relay | 5 |
| Contact Rating - Relay Socket | 12A @ 300V AC |
| Color | Black |
| Item | Relay Socket |
| Depth | 2.56 in |
| Number of Pins | 5 |
| Width | 0.61 in |
| Standards | CE Certified, CSA Certified, IEC 61984, UL Listed |
| Socket Type | Finger Safe, Elevator |
| Width - Relay Socket | 1.65 in |
| Height - Relay Socket | 0.7 in |
| Depth - Relay Socket | 0.85 in |
| Status Indicator | None |
| Mounting Style | DIN Rail |
| Number of Terminals | 5 |
| Contact Terminal Arrangement | Separate |
| Base Style | Square |
| Height | 0.7 in |
| Flat Pin Width | Not Applicable |
| Contact Form | SPDT |
| IP Rating | IP20 |
| Electrical Connection | Screw |
| Contact Rating (AC) | 12 A @ 300 V |
| Pin Shape | Flat |
| Maximum Operating Temperature | 185 deg F |
| Minimum Operating Temperature | -13 deg F |
| Current Rating | 12 A |
| Compatible Relays | Harmony(TM) RSB Series |
| Product Compatibility | plug-in relay RSB 1 C/O |
| Shape Of Pin | flat |
| Marking | CE |
| Product Certifications | UL || CSA |
| [Ith] Conventional Free Air Thermal Current | 12 A |
| Dielectric Strength | 2500 V |
| [Uimp] Rated Impulse Withstand Voltage | 3.6 kV |
| [Ue] Rated Operational Voltage | < 250 V AC |
| Ip Degree Of Protection | IP20 conforming to EN/IEC 60529 |
| Ambient Air Temperature For Operation | -25-85°C |
| Product Or Component Type | socket |
| Ambient Air Temperature For Storage | -40-85°C |
| Overvoltage Category | III |
| Connections - Terminals | screw connectors, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || screw connectors, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || screw connectors, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw connectors, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end |
| Fixing Mode | by screw panel) || clip-on 35 mm symmetrical DIN rail) |
| Device Short Name | RSZ |
| Tightening Torque | < 0.8 N.m M3 |
| Pollution Degree | 3 |
| Package Quantity | 10 |
