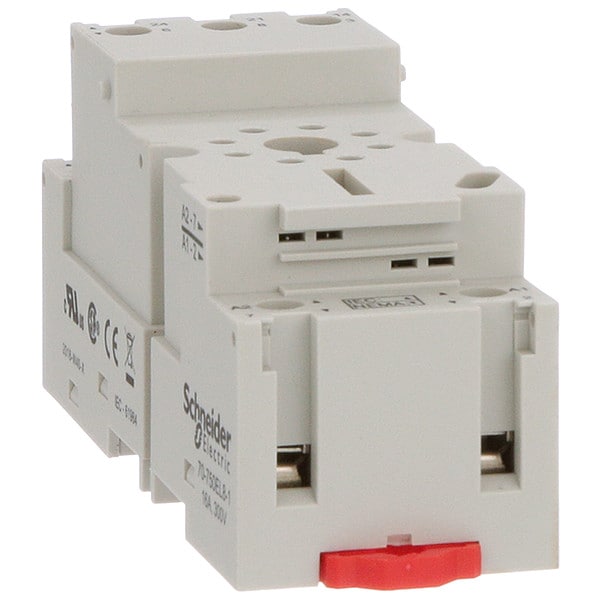

Zócalo de relay, seguro para dedos, octal, 8 pines, 16A.
| Item - Relay | Relay Socket |
|---|---|
| Socket Type - Relay | Elevator, Finger Safe |
| Base Style - Relay Socket | Octal |
| Contact Form - Relay Socket | DPDT |
| Mounting - Relay | DIN Rail |
| Electrical Connection - Relay Socket | Screw Clamp |
| Number of Pins - Relay | 8 |
| Socket Code | A |
| Contact Rating - Relay Socket | 16A @ 300V AC |
| Color | White |
| Socket Style | Octal |
| Depth | 2.24 in |
| Status Indicator | None |
| Width - Relay Socket | 1.4 in |
| Width | 1.42 in |
| Height - Relay Socket | 1.77 in |
| Depth - Relay Socket | 3.77 in |
| Voltage | 300VAC |
| Contact Rating | 16 A @ 300 VAC |
| Socket Type | Finger Safe, Standard |
| Number of Pins | 8 |
| Standards | CE Certified, CSA Certified, UL Listed |
| Terminals | Screw Clamp |
| Length | 3.77 in |
| Mounting | DIN Rail |
| Item | Relay Socket |
| Contact Form | DPDT |
| Height | 1.77 in |
| Weight | 2.79 oz |
| Contact Rating (AC) | 16 A @ 300 V |
| Current Rating | 16 A |
| Flat Pin Width | Not Applicable |
| Number of Terminals | 8 |
| Maximum Operating Temperature | 131 deg F |
| IP Rating | IP20 |
| Contact Terminal Arrangement | Separate |
| Compatible Relays | 750R Series |
| Base Style | Octal |
| Mounting Style | DIN Rail |
| Minimum Operating Temperature | -40 deg F |
| Electrical Connection | Screw Clamp |
| Pin Shape | Round |
| Ambient Air Temperature for Storage | -40 to 221°F |
| Product Type | Socket |
| Fixing Mode | By screw M3.5, M3.5 panel; Clip-on 35 mm DIN rail |
| [Ue] rated operational voltage | 300 V |
| Product Compatibility | relay 750XBXR; suppressor module 70-ASMM; diode 70-ASMD; signalling device 70-ASMLG; suppressor module 70-ASMR; jumper wire 16-750CBJ-1 |
| Product Range | Legacy |
| Tightening Torque | < 0.8 N-m |
| Shape of Screw Head | Combination roundhead |
| Flame Retardance | UL94-V0 |
| Connections Terminals | lift terminals flexible; lift terminals solid |
| Product Certifications | CE, CSA, UL |
| Contact Composition | 2 NO + 2 NC |
| Ambient Air Temperature for Operation | -40 to 131°F (-40 to 55°C) |
| Package Quantity | 1 |
