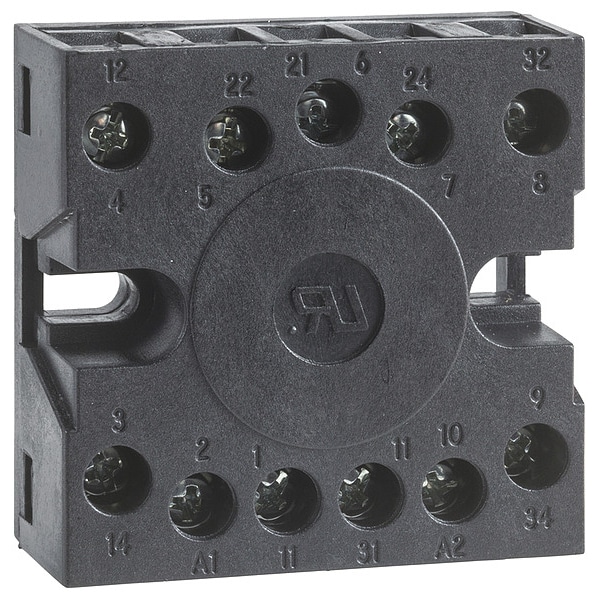

Zócalo de relé, octal, 11 pines, 5 A.
| Depth | 0.79 in |
|---|---|
| Socket Code | B |
| Item | Relay Socket |
| Socket Type | Finger Safe, Standard |
| Number of Pins | 11 |
| For Use With | RE48ACV12MW, RE48AML12MW |
| Width | 1.81 in |
| Type | Socket |
| Use With | RE48ACV12MW, RE48AML12MW |
| Contact Form | DPDT |
| Pin Shape | Round |
| Number of Terminals | 11 |
| Current Rating | 5 A |
| Electrical Connection | Screw |
| Flat Pin Width | Not Applicable |
| Height | 1.81 in |
| Compatible Relays | RE48 Series |
| Base Style | Octal |
| IP Rating | IP20 |
| Mounting Style | Surface |
| Product Or Component Type | socket |
| Accessory / Separate Part Designation | IP20 socket with screw terminal connections on rear face |
| Product Compatibility | RE48ACV12MW || RE48AML12MW |
| Ip Degree Of Protection | IP20 |
| Accessory / Separate Part Category | connection accessories |
| Accessory / Separate Part Destination | timing relay |
| Connections - Terminals | screw connectors |
| Pin Number | 11 pins |
| Package Quantity | 1 |
