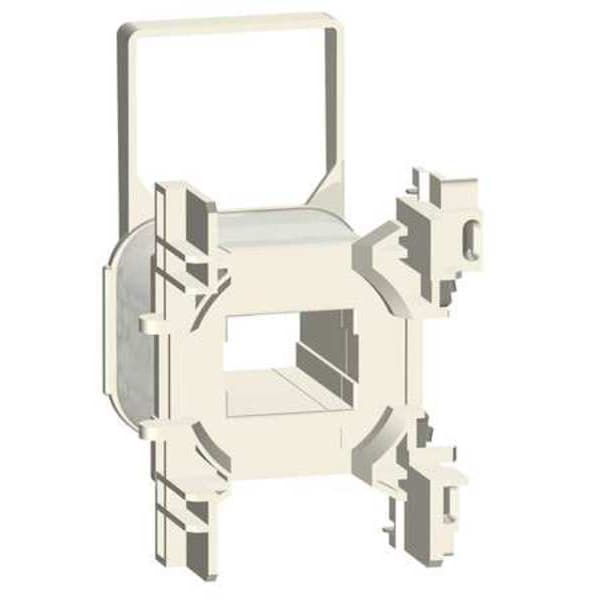

Bobina magnética de repuesto, 208VCA, 50/60Hz.
| Item | Replacement Coil |
|---|---|
| For Use With | TeSys D Everlink Contactors, LC1D40A - D65A, C1DT60A, LC1DT80A |
| Coil Volts | 208 V AC |
| VA Rating | 160 |
| Hz | 50/60 |
| Contactor Type | IEC |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Inductance Of Closed Circuit | 6.22 H |
| Inrush Power In Va | 160-160 VA 60 Hz 0.75 20 °C) |
| Range | TeSys |
| Ambient Air Temperature For Operation | -5-60 °C |
| Control Circuit Voltage Limits | drop-out 0.3 to 0.6 Uc 60 Hz 60 °C) || operational 0.85 to 1.1 Uc 60 Hz 60 °C) |
| Device Short Name | LXD3 |
| Product Compatibility | LC1D40A to D80A || LC2D40A to D80A || LC1DT60A to DT80A |
| Heat Dissipation | 4-5 W 60 Hz |
| Product Or Component Type | contactor coil |
| Control Circuit Type | AC 60 Hz |
| Mechanical Durability | 6 Mcycles |
| Hold-In Power Consumption In Va | 15-15 VA 60 Hz 0.3 20 °C) |
| Coil Technology | without built-in suppressor module |
| [Uc] Control Circuit Voltage | 208 V AC 60 Hz |
| Average Resistance | 105 Ohm 20 °C |
| Coil Voltage | 208V AC |
| Coil Power | 160 VA |
| Frequency | 60 Hz |
| Contactor Style | IEC |
| NEMA Size | Not Applicable |
| Compatible with Series | LC1D40A to D80A Contactors, LC1DT60A to DT80A Contactors, LC2D40A to D80A Contactors, TeSys Deca |
| Package Quantity | 1 |
