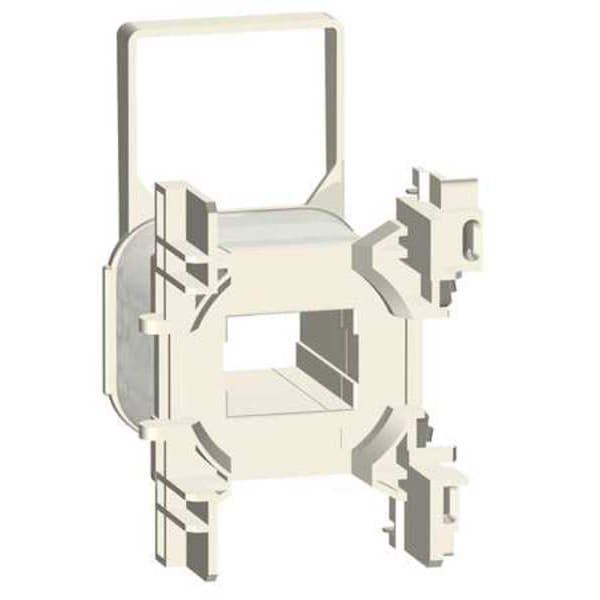

Bobina magnética de repuesto, 24VAC, 50/60 Hz.
| Item | Replacement Coil |
|---|---|
| For Use With | TeSys D Everlink Contactors, LC1D40A - D65A, C1DT60A, LC1DT80A |
| Coil Volts | 24 V AC |
| VA Rating | 160 |
| Hz | 50/60 |
| Contactor Type | IEC |
| Inductance Of Closed Circuit | 0.12 H |
| Coil Technology | without built-in suppressor module |
| Ambient Air Temperature For Operation | -5-60 °C |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Average Resistance | 1.98 Ohm 20 °C |
| Hold-In Power Consumption In Va | 15-15 VA 60 Hz 0.3 20 °C) || 15-15 VA 50 Hz 0.3 20 °C) |
| Control Circuit Voltage Limits | drop-out 0.3 to 0.6 Uc 50/60 Hz 60 °C) || operational 0.8 to 1.1 Uc 50 Hz 60 °C) || operational 0.85 to 1.1 Uc 60 Hz 60 °C) |
| Heat Dissipation | 4-5 W 50/60 Hz |
| Control Circuit Type | AC 50/60 Hz |
| Inrush Power In Va | 160-160 VA 60 Hz 0.75 20 °C) || 160-160 VA 50 Hz 0.75 20 °C) |
| Mechanical Durability | 6 Mcycles |
| Product Compatibility | LC1DT60A || LC1D40A to D65A || LC1DT80A |
| Device Short Name | LXD3 |
| Product Or Component Type | contactor coil |
| Range | TeSys |
| [Uc] Control Circuit Voltage | 24 V AC 50/60 Hz |
| Compatible with Series | LC1D40A to D65A Contactors, LC1DT60A Contactors, LC1DT80A Contactors, TeSys Deca |
| Contactor Style | IEC |
| NEMA Size | Not Applicable |
| Frequency | 50/60 Hz |
| Coil Power | 160 VA |
| Coil Voltage | 24V AC |
| Package Quantity | 1 |
