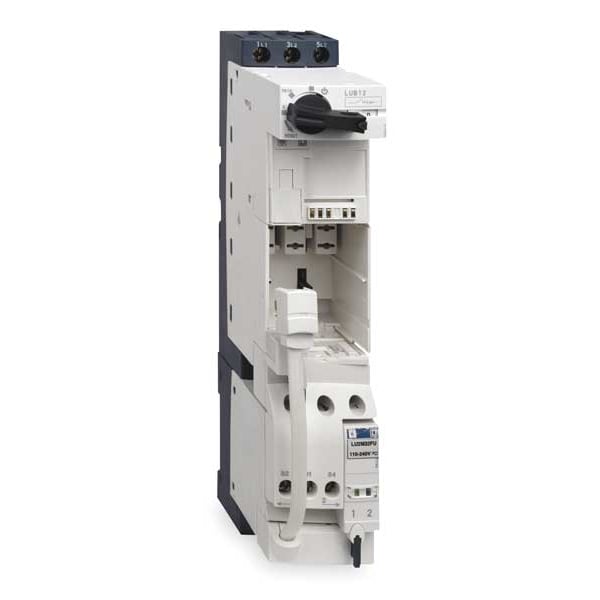

Arrancador de marcha atrás para base de potencia, 24V AC, 3 polos, 1NC/1NO.
| Item | Starter Power Base |
|---|---|
| Overload Relay Amp Setting | Up to 12A |
| Coil Volts | 24V AC |
| Auxiliary Contact Form | 1NO, 1NC |
| HP @ 3 Phase - 240V | 3 HP |
| Starter Type | IEC Style |
| Action | Reversing |
| Amps AC | 12 A |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 7.5 HP |
| HP @ 1 Phase - 120V | 1 1/2 hp |
| HP @ 3 Phase - 575V | 10 hp |
| Depth | 5 in |
| HP @ 1 Phase - 240V | 2 HP |
| Hz | 50/60 |
| HP @ 3 Phase - 208V | 3 HP |
| Height | 8.82 in |
| Standards | CCC, CSA, EAC, Green Premium RoHS/REACH, UL Listed |
| Enclosure Type | Open |
| Width | 1.77 in |
| Features | Mercury Free; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration; Suitability For Isolation |
| HP @ 1 Phase - 230V | 2 |
| Weight | 1.27 kg |
| Operating Voltage | 690V AC |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Overall Height | 8.82 in |
| Coil Voltage | 24V AC |
| Starter Style | IEC |
| Overall Width | 1.77 in |
| Overall Depth | 4.96 in |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Horsepower @ Single Phase - 120V AC | 1.5 HP |
| Horsepower @ Three Phase - 480V AC | 7.5 HP |
| Compatible with Series | TeSys Ultra |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Reversing Capability | Reversing |
| Maximum Voltage Rating | 690 V AC |
| Maximum Overload Relay Current Setting | 12 A |
| Package Quantity | 1 |
