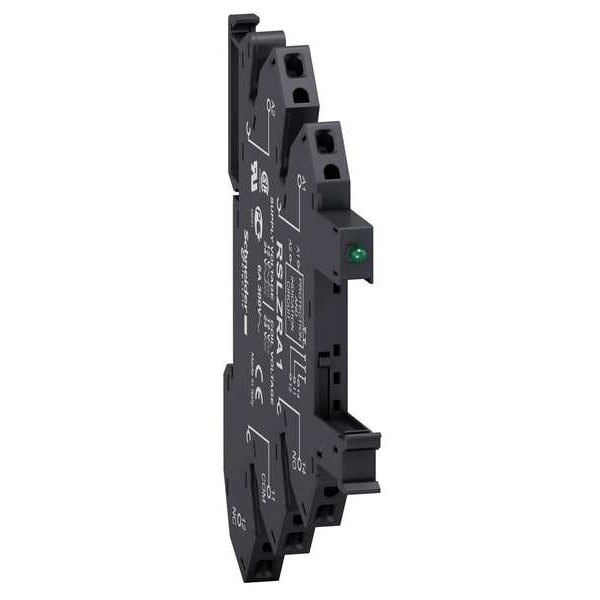

Rlay Socket, Finger Safe, Interfaz Delgada, 5 Pines
| Item - Relay | Slim Interface Relay Socket |
|---|---|
| Mounting - Relay | DIN Rail |
| Number of Pins - Relay | 5 |
| Length | 4-1/4 in |
| Contact Form - Relay | SPDT |
| Socket Style | Slim Interface |
| Depth | 3.98 in |
| Voltage | 230VAC |
| Body Depth - Relay | 0.24 in |
| Overall Height - Relay | 3.1 in |
| Status Indicator | LED Indicator |
| Body Height - Relay | 3.1 in |
| Item | Slim Interface Relay Socket |
| Standards | CSA Certified, GOST, IEC 61984, UL 508 |
| Socket Included | Spring Terminal Socket |
| Body Width - Relay | 3.99 in |
| Number of Pins | 5 |
| Terminals | Spring |
| Socket Supply Voltage | DC, 230V AC |
| Width | 0.24 in |
| Coil Volts | 60V DC |
| Contact Rating | 6 A @ 300 VAC |
| Socket Type | Finger Safe |
| Contact Terminal Arrangement | Separate |
| Dielectric Strength | 2,500V |
| Minimum Operating Temperature | -40 deg F |
| Compatible Relays | RSL 230 V AC/DC |
| Weight | 0.8 oz |
| Current Rating | 6 A |
| IP Rating | IP20 |
| Compatible with Manufacturer Model Number | RSLZ2, RSLZ3, RSLZ5 |
| Contact Form | SPDT |
| Electrical Connection | Spring Terminal |
| Height | 3.09 in |
| Contact Rating (AC) | 6 A @ 300 V |
| Base Style | Square |
| Maximum Operating Temperature | 131 deg F |
| Pin Shape | Flat |
| Mounting Style | DIN Rail |
| Clamping Force | 10-40 N |
| Marking | CE |
| Product Or Component Type | socket |
| Ip Degree Of Protection | IP20 conforming to EN/IEC 60529 |
| Overvoltage Category | III |
| Fixing Mode | plastic compression spring 35 mm symmetrical DIN rail) |
| Cad Overall Depth | 101 mm |
| Group Of Product | RSL_SPRING_TERS_230 |
| Device Short Name | RSLZ |
| Shape Of Pin | flat |
| Cad Overall Width | 6.2 mm |
| Rated Operational Voltage Limits | 184...264.5 V |
| Device Presentation | basic element |
| Product Certifications | GOST || CSA |
| [Ue] Rated Operational Voltage | < 300 V AC |
| Switching Voltage | 230 V AC/DC |
| [Uimp] Rated Impulse Withstand Voltage | 3.6 kV |
| Pollution Degree | 3 |
| [Ith] Conventional Free Air Thermal Current | 6 A |
| Compatibility Code | RSLZ |
| Connections - Terminals | spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) solid without cable end |
| Ambient Air Temperature For Storage | -40-85°C |
| Product Compatibility | plug-in relay RSL 1 C/O 60 V DC |
| Ambient Air Temperature For Operation | -40-55°C |
| Cad Overall Height | 78.6 mm |
| Package Quantity | 1 |
