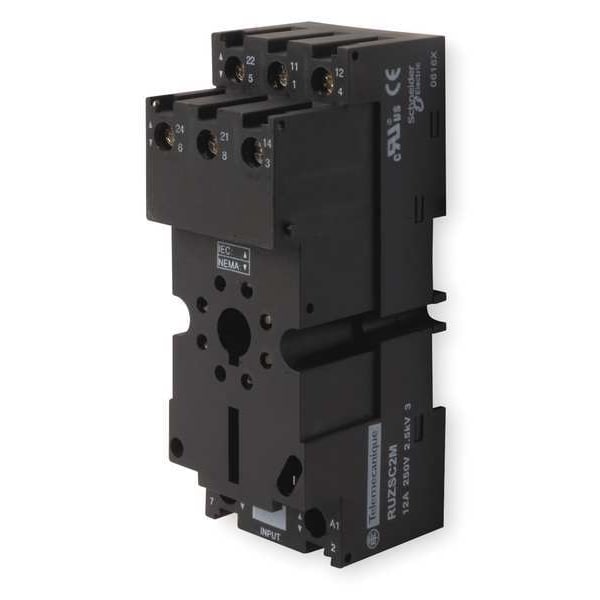

Toma de corriente Rlay con protección para los dedos/ascensor, 8 pines, 12A.
| Item - Relay | Relay Socket |
|---|---|
| Socket Type - Relay | Elevator, Finger Safe |
| Base Style - Relay Socket | Octal |
| Contact Form - Relay Socket | DPDT |
| Mounting - Relay | DIN Rail |
| Electrical Connection - Relay Socket | Box Lug |
| Number of Pins - Relay | 8 |
| Socket Code | A |
| Contact Rating - Relay Socket | 12A @ 250V AC |
| Color | Black |
| Standards | CE Certified, CSA Certified, IEC 61984, UL Listed |
| Contact Rating | 12 A @ 250 VAC |
| Mounting | DIN Rail |
| Depth - Relay Socket | 3.78 in |
| Length | 3.78 in |
| Height - Relay Socket | 1.77 in |
| Width - Relay Socket | 1.42 in |
| Socket Style | Octal |
| Depth | 4.13 in |
| Socket Type | Finger Safe, Elevator |
| Voltage | 250VAC |
| Width | 1.42 in |
| Item | Relay Socket |
| Terminals | Box Lug Separate |
| Status Indicator | None |
| Number of Pins | 8 |
| Contact Form | DPDT |
| Minimum Operating Temperature | -40 deg F |
| Weight | 3.36 oz |
| Number of Terminals | 8 |
| Maximum Operating Temperature | 131 deg F |
| Contact Terminal Arrangement | Separate |
| Contact Rating (AC) | 12 A @ 250 V |
| Current Rating | 12 A |
| Flat Pin Width | Not Applicable |
| Mounting Style | DIN Rail |
| Base Style | Octal |
| Height | 3.54 in |
| Electrical Connection | Screw |
| Pin Shape | Round |
| IP Rating | IP20 |
| Compatible Relays | Harmony(TM) RUM Series |
| Ip Degree Of Protection | IP20 conforming to EN/IEC 60529 |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| [Ue] Rated Operational Voltage | < 250 V |
| Ambient Air Temperature For Operation | -40-55°C |
| Product Or Component Type | socket |
| Ambient Air Temperature For Storage | -40-85°C |
| Product Compatibility | plug-in relay RUM 2 C/O |
| Connections - Terminals | connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end |
| Dielectric Strength | 2500 V |
| [Ith] Conventional Free Air Thermal Current | 12 A |
| Marking | CE |
| Device Short Name | RUZ |
| Shape Of Pin | cylindrical |
| Product Certifications | UL || CSA |
| Fixing Mode | by screw panel) || clip-on 35 mm symmetrical DIN rail) |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV |
| Tightening Torque | < 1 N.m M3.5 |
| Package Quantity | 1 |
