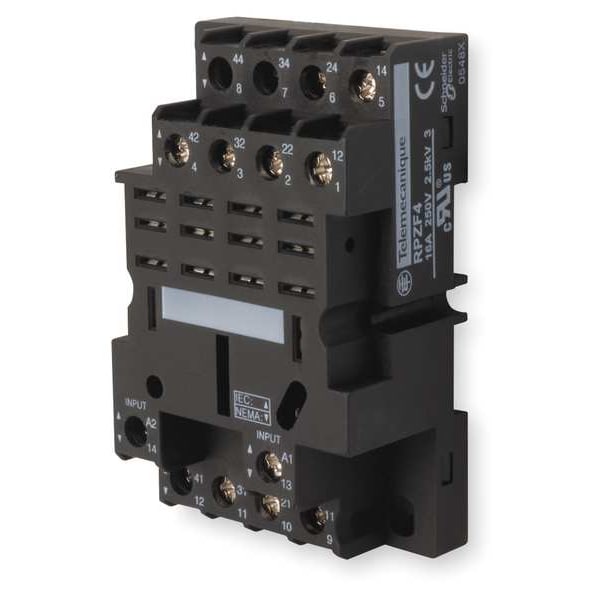

Tomacorrientes Rlay, protección para los dedos y seguro de elevador, cuadrado, 16A.
| Item - Relay | Relay Socket |
|---|---|
| Socket Type - Relay | Elevator, Finger Safe |
| Base Style - Relay Socket | Square |
| Contact Form - Relay Socket | 4PDT |
| Mounting - Relay | DIN Rail |
| Electrical Connection - Relay Socket | Screw Clamp |
| Number of Pins - Relay | 14 |
| Socket Code | F |
| Contact Rating - Relay Socket | 16A @ 250V AC |
| Color | Gray |
| Socket Style | Square |
| Number of Pins | 14 |
| Standards | CE Certified, CSA Certified, IEC 61984, UL Listed |
| Depth | 3.31 in |
| Socket Type | Finger Safe, Elevator |
| Terminals | Screw Clamp |
| Length | 3.31 in |
| Voltage | 250VAC |
| Height - Relay Socket | 1.18 in |
| Item | Relay Socket |
| Depth - Relay Socket | 3.31 in |
| Width - Relay Socket | 1.97 in |
| Mounting | DIN Rail |
| Status Indicator | None |
| Contact Rating | 16 A @ 250 VAC |
| Width | 1.97 in |
| Contact Form | 4PDT |
| Mounting Style | DIN Rail & Surface |
| Contact Terminal Arrangement | Mixed |
| Height | 1.18 in |
| Minimum Operating Temperature | -40 deg F |
| Contact Rating (AC) | 16 A @ 250 V |
| Maximum Operating Temperature | 131 deg F |
| IP Rating | IP20 |
| Current Rating | 16 A |
| Weight | 3.36 oz |
| Flat Pin Width | 0.18 in |
| Electrical Connection | Screw Clamp |
| Base Style | Square |
| Pin Shape | Flat |
| Number of Terminals | 14 |
| Compatible Relays | Harmony(TM) RPM Series |
| Dielectric Strength | 2500 V |
| Connections - Terminals | screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14 || - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16 || - screw clamp terminals, flexible with cable end 2 x 0.5...2 x 2.5 mm² / AWG 20...AWG 14 || - screw clamp terminals, solid without cable end 2 x 0.5...2 x 1.5 mm² / AWG 20...AWG 16 |
| Product Or Component Type | socket |
| Product Certifications | UL || CSA |
| [Ith] Conventional Free Air Thermal Current | 16 A |
| Product Compatibility | plug-in relay RPM 4 C/O |
| Ambient Air Temperature For Operation | -40-55°C |
| [Ue] Rated Operational Voltage | < 250 V |
| Pollution Degree | 3 |
| Marking | CE |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV |
| Tightening Torque | < 1 N.m M3.5 |
| Ip Degree Of Protection | IP20 conforming to EN/IEC 60529 |
| Device Short Name | RPZ |
| Ambient Air Temperature For Storage | -40-85°C |
| Overvoltage Category | III |
| Shape Of Pin | flat |
| Fixing Mode | by screw panel) || clip-on 35 mm symmetrical DIN rail) |
| Package Quantity | 1 |
