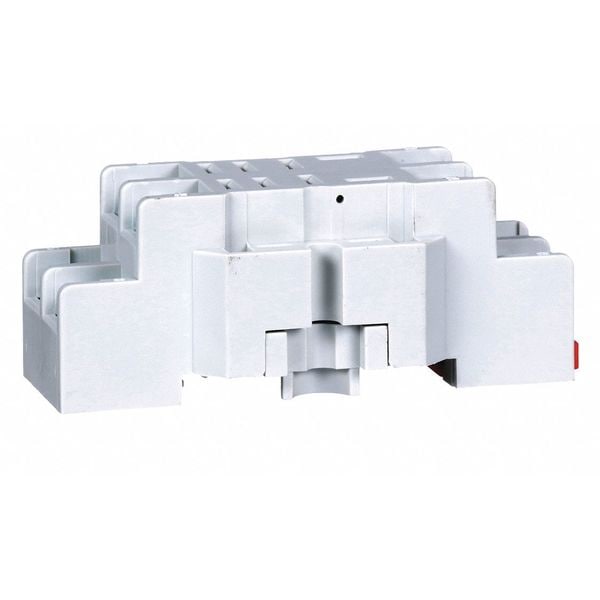

Rly Scket, estándar, cuadrado, 8 pines, riel DIN.
| Item - Relay | Relay Socket |
|---|---|
| Socket Type - Relay | Elevator |
| Base Style - Relay Socket | Square |
| Contact Form - Relay Socket | DPDT |
| Mounting - Relay | DIN Rail, Surface |
| Electrical Connection - Relay Socket | Screw Clamp |
| Number of Pins - Relay | 8 |
| Socket Code | D |
| Contact Rating - Relay Socket | 10A @ 300V AC |
| Color | White |
| Height - Relay Socket | 1 in |
| Socket Type | Elevator |
| Terminals | Screw Clamp |
| Standards | CE Certified, CSA Certified, UL Recognized |
| Number of Pins | 8 |
| Length | 2-3/4 in |
| Status Indicator | None |
| Depth - Relay Socket | 2.72 in |
| Width | 1.18 in |
| Mounting | DIN Rail, Surface |
| Depth | 0.99 in |
| Width - Relay Socket | 1.18 in |
| Item | Relay Socket |
| Contact Rating | 10 A @ 300 VAC |
| Socket Style | Square |
| Voltage | 250VAC |
| Mounting Style | DIN Rail & Surface |
| Base Style | Square |
| Electrical Connection | Screw Clamp |
| Contact Form | DPDT |
| Contact Rating (AC) | 10 A @ 300 V |
| Height | 2.72 in |
| Current Rating | 10 A |
| Number of Terminals | 8 |
| Flat Pin Width | 0.18 in |
| Pin Shape | Flat |
| Compatible Relays | Square D 8501R Miniature Series |
| Pin Number | 8 |
| Mounting Support | panel || DIN rail |
| Line Rated Current | 10 A 300 V AC |
| Product Certifications | UL Recognized || CSA || CE |
| Shape Of Pin | spade |
| Product Or Component Type | Relay Socket |
| Certifications | CE, CSA, UL Recognized |
| Mounting Type | Panel; DIN rail |
| Package Quantity | 1 |
