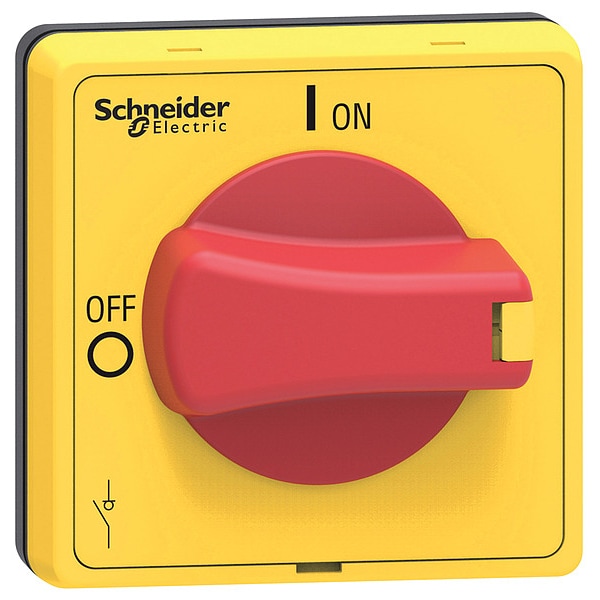

Mango giratorio, rojo/amarillo, NEMA1/12/3R/4/4X
| Item | Rotary Handle |
|---|---|
| Description/Special Features | Mercury Free, RoHS Exemption Information, Toxic Heavy Metal Free |
| Includes | Padlock |
| For Use With | TeSys VLS Series |
| Height | 1.89 in |
| Depth | 1.54 in |
| Features | Opening for 5 mm (0.2 in) Shaft Width, Protruding Selector |
| Width | 1.89 in |
| Standards | cULus Listed, Meets IEC 60947-3 |
| Compatible with Manufacturer Model Number | VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S |
| NEMA Enclosure Rating | 1, 12, 3R, 4, 4X |
| Product Type | Replacement Handle |
| Color | Red, Yellow |
| For Disconnect Switch Size | 100 A, 125 A, 16 A, 25 A, 32 A, 40 A, 63 A, 80 A |
| Environment | Indoor, Outdoor |
| Compatible with Manufacturer Part Number | VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S |
| Compatible Manufacturer Part Number | VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S |
| Compatible with Manufacturer Model Number [NEW] | VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S |
| Compatible Manufacturer Model Number | VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S |
| For Use with Mfr. Model Number | VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S |
| Ip Degree Of Protection | IP65 |
| Handle Front Plate Colour | yellow |
| Range Compatibility | TeSys (TeSys VARIO LS) VLS3P |
| Rotary Handle Padlocking | 1 padlock 4-8 mm |
| Handle Colour | red |
| Marking | 0 - 1 |
| Tightening Torque | 2.3 N.m |
| Base Dimension | 48 mm x 48 mm |
| Product Or Component Type | rotary handle |
| Nema Degree Of Protection | NEMA 1 || NEMA 2 UL 508 || NEMA 3R UL 508 || NEMA 4 UL 508 || NEMA 4X UL 508 || NEMA 12 UL 508 || NEMA 12K UL 508 |
| Device Short Name | VLSH |
| Fixing Mode | by 4 screws |
| Package Quantity | 1 |
