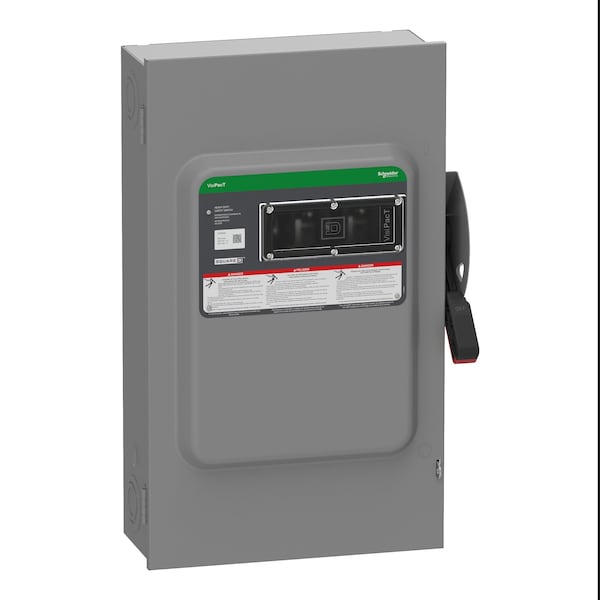

Interruptor de seguridad, 3 polos, 200 A, 4 cables
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Voltage | 240 V AC |
| Number of Poles | 3 |
| Phase | Three |
| Contact Form | 3PST |
| IP Rating | IP20 |
| Duty | Heavy Duty |
| Current Rating | 200 A |
| Neutral Assembly Included | Yes |
| Number of Locks | 2 |
| Number of Wires | 4 |
| Depth | 8-1/2 in |
| Includes Interlocked Receptacle | Yes |
| Includes | Dual Cover Interlock |
| Horsepower @ 600V AC | Not Rated |
| Enclosure Type | Enclosed |
| NEMA Enclosure Rating | 1 |
| Fuse Kit (Class R) | Mfr. No. HRK1020 |
| Series | F |
| Horsepower @ 480V AC | Not Rated |
| Height | 29 in |
| Mounting Style | Surface Mount |
| Standards | EU RoHS, UL listed file E2875 |
| Environment | Indoor |
| Number of Mounting Holes | 4 |
| Compatible with Manufacturer Model Number | HRK1020 |
| Width | 16-1/2 in |
| Horsepower @ 240V AC | 60 HP |
| Features | Quick Make/Break Operating Mechanism, Viewing Window |
| Housing Material | Steel |
| Handle Color | Red, Black |
| For Fuse Class | Class H, Class K |
| Compatible Manufacturer Part Number | HRK1020 |
| Compatible Manufacturer Model Number | HRK1020 |
| For Use with Mfr. Model Number | HRK1020 |
| Package Quantity | 1 |
