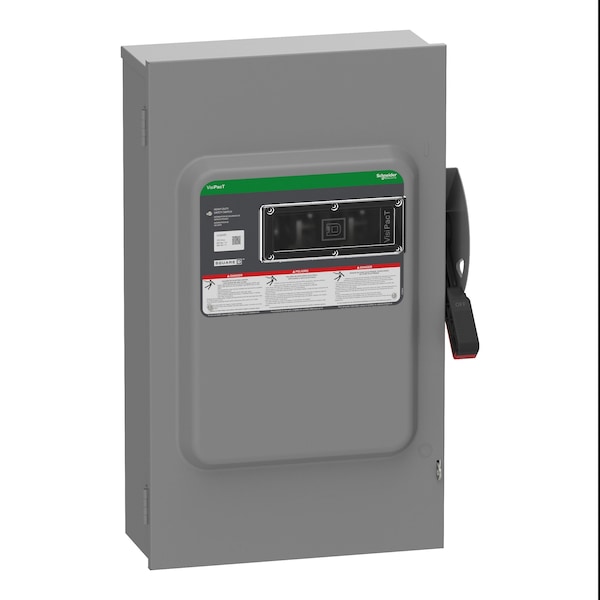

Interruptor de seguridad, 3PST, 200 A, 3 polos, 4 cables.
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Voltage | 600V AC/DC |
| Number of Poles | 3 |
| Phase | Three |
| Contact Form | 3PST |
| IP Rating | IP14 |
| Duty | Heavy Duty |
| Depth | 8-1/2 in |
| Horsepower @ 600V AC | 60 HP |
| Standards | EU RoHS, UL listed file E2875 |
| Number of Wires | 4 |
| Width | 17 in |
| Compatible with Manufacturer Model Number | HRK1020 |
| Handle Color | Red, Black |
| Includes Interlocked Receptacle | Yes |
| Series | F |
| Mounting Style | Surface Mount |
| Current Rating | 200 A |
| Includes | Dual Cover Interlock |
| Height | 29 in |
| Number of Mounting Holes | 4 |
| Number of Locks | 2 |
| NEMA Enclosure Rating | 3 R |
| Environment | Indoor, Outdoor |
| Enclosure Type | Enclosed |
| Horsepower @ 240V AC | Not Rated |
| Features | Quick Make/Break Operating Mechanism, Viewing Window |
| Housing Material | Galvannealed Steel |
| Horsepower @ 480V AC | 50 HP |
| Fuse Kit (Class R) | Mfr. No. HRK1020 |
| Neutral Assembly Included | Yes |
| For Fuse Class | Class H, Class K |
| Compatible Manufacturer Part Number | HRK1020 |
| Compatible Manufacturer Model Number | HRK1020 |
| For Use with Mfr. Model Number | HRK1020 |
| Package Quantity | 1 |
