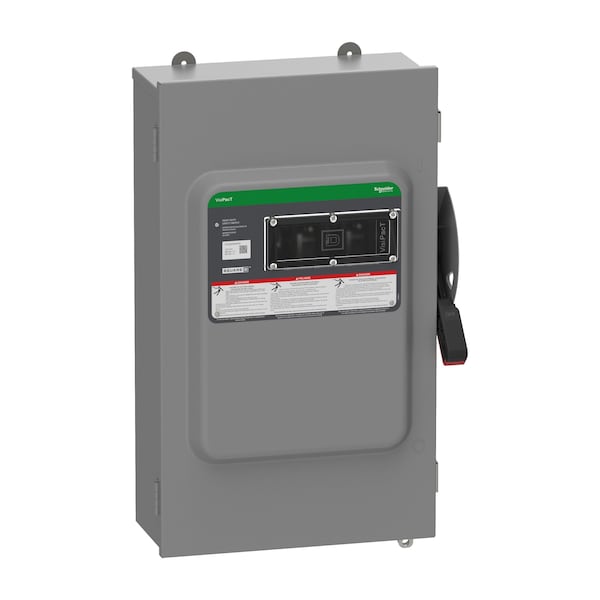

Interruptor de seguridad, 3PST (tres posiciones de apagado), 200 A, 3 polos, 4 cables.
| Item | Safety Switch |
|---|---|
| Protection Method | Non-Fusible |
| Duty | Heavy |
| Voltage | 600V AC/DC |
| Phase | Three |
| IP Rating | IP52 |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Enclosure Type | Enclosed |
| Housing Material | Steel |
| Mounting Style | Surface Mount |
| Handle Color | Red, Black |
| For Fuse Class | Not Applicable |
| Current Rating | 200 A |
| Horsepower @ 240V AC | 10 HP |
| Fuse Kit (Class R) | Mfr. No. RFK1020 |
| Horsepower @ 600V AC | 150 HP |
| Height | 29 in |
| Width | 17 in |
| Standards | EU RoHS, UL listed file E2875 |
| Environment | Indoor |
| Horsepower @ 480V AC | 125 HP |
| Series | F |
| Features | Quick Make/Break Operating Mechanism, Viewing Window |
| Includes | Dual Cover Interlock |
| Number of Mounting Holes | 4 |
| Number of Locks | 2 |
| Compatible with Manufacturer Model Number | RFK1020 |
| Includes Interlocked Receptacle | Yes |
| Depth | 9 in |
| NEMA Enclosure Rating | 12 |
| Neutral Assembly Included | Yes |
| Compatible with Manufacturer Model Number [NEW] | RFK1020 |
| Compatible Manufacturer Part Number | RFK1020 |
| Compatible Manufacturer Model Number | RFK1020 |
| For Use with Mfr. Model Number | RFK1020 |
| Package Quantity | 1 |
