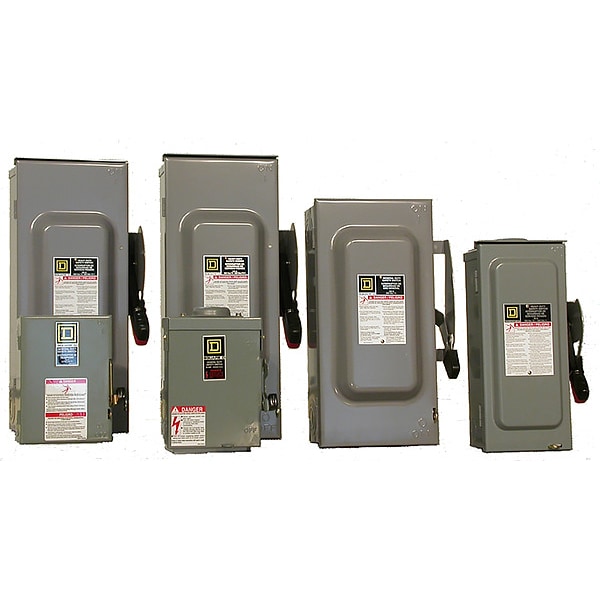

Interruptor de seguridad, 3PST, 200 A, 3 Polos, 4 Cables.
| Item | Safety Switch |
|---|---|
| Protection Method | Non-Fusible |
| Duty | Heavy |
| Voltage | 600V AC/DC |
| Phase | Three |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Mounting Style | Surface Mount |
| Width | 17-1/2 in |
| Includes Interlocked Receptacle | Yes |
| NEMA Enclosure Rating | 4X |
| Features | Quick Make/Break Operating Mechanism, Viewing Window |
| Horsepower @ 480V AC | 125 HP |
| Neutral Assembly Included | Yes |
| Height | 29 in |
| Depth | 9 in |
| Horsepower @ 600V AC | 150 HP |
| Handle Color | Red, Black |
| Horsepower @ 240V AC | Not Rated |
| Includes | Dual Cover Interlock |
| Number of Locks | 2 |
| Environment | Indoor, Outdoor |
| For Fuse Class | Not Applicable |
| Housing Material | Stainless Steel |
| Enclosure Type | Enclosed |
| Standards | EU RoHS, UL listed file E2875 |
| Current Rating | 200 A |
| Package Quantity | 1 |
