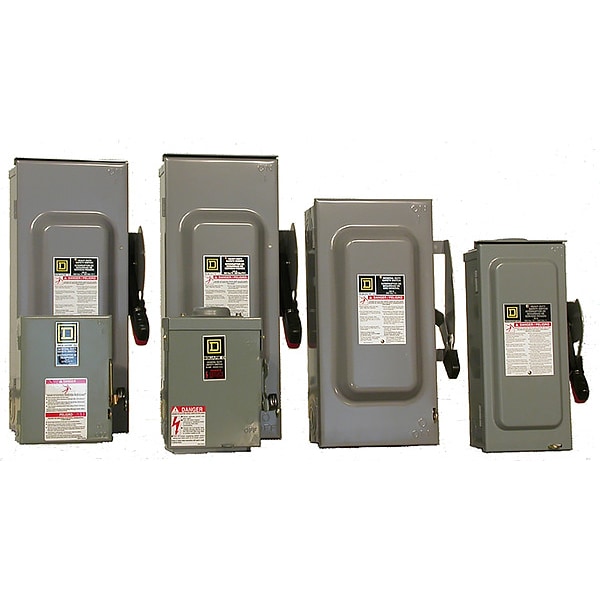

Interruptor de seguridad, 3 polos, 60 A, 4 cables.
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy |
| Voltage | 240V AC |
| Phase | Three |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Includes | Dual Cover Interlock |
| NEMA Enclosure Rating | 12 |
| Number of Locks | 2 |
| Horsepower @ 480V AC | Not Rated |
| For Fuse Class | Class H, Class K |
| Series | F |
| Fuse Kit (Class R) | Mfr. No. RFK03H |
| Environment | Indoor |
| Height | 14-1/2 in |
| Width | 6-1/2 in |
| Housing Material | Steel |
| Standards | EU RoHS, UL listed file E2875 |
| Includes Interlocked Receptacle | Yes |
| Current Rating | 60 A |
| Features | Quick Make/Break Operating Mechanism, Viewing Window |
| Enclosure Type | Enclosed |
| Handle Color | Red, Black |
| Depth | 5-1/4 in |
| Compatible with Manufacturer Model Number | RFK03H |
| Horsepower @ 240V AC | Not Rated |
| Horsepower @ 600V AC | Not Rated |
| Neutral Assembly Included | Yes |
| Mounting Style | Surface Mount |
| Compatible with Manufacturer Model Number [NEW] | RFK03H |
| Compatible Manufacturer Part Number | RFK03H |
| Compatible Manufacturer Model Number | RFK03H |
| For Use with Mfr. Model Number | RFK03H |
| Package Quantity | 1 |
