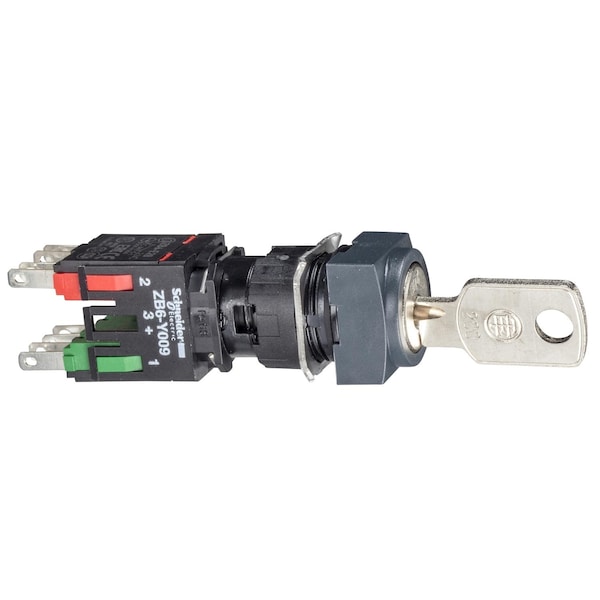

Interruptor seleccionador 240Vca 15A Xb6
| Item | Selector Switch |
|---|---|
| Bezel Material | plastic |
| Standards | JIS C8201-5-1 || UL 508 || JIS C 852 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-1 |
| Series | XB6 |
| Connections - Terminals | Faston connectors 2.8 x 0.5 mm |
| [Ie] Rated Operational Current | 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| Electrical Reliability | λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN 60947-5-4 |
| Vibration Resistance | +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6 |
| Type Of Keylock | Ronis 200 |
| Electrical Durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Device Short Name | XB6 |
| Positive Opening | IEC, with EN 60947-5-1 appendix K |
| Type Of Operator | stay put |
| Mounting Diameter | 16 mm |
| Contacts Material | silver alloy |
| Electrical Shock Protection Class | class II IEC 61140 |
| Shape Of Signaling Unit Head | square |
| Mechanical Durability | 200,000 cycle |
| Operator Profile | key switch |
| Ambient Air Temperature For Storage | -40-70°C |
| Product Certifications | GOST || CSA, UL || CCC |
| Cad Overall Width | 18 mm |
| Key Withdrawal Position | in any position |
| Protective Treatment | TC |
| Operating Position | any position |
| Short-Circuit Protection | 6 A cartridge fuse gG |
| Operator Position Information | 2 positions 70° |
| Cad Overall Height | 18 mm |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
| Contacts Type And Composition | 1 NO + 1 NC |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Terminals Description Iso N°1 | NO || NC |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Product Or Component Type | switch |
| Ambient Air Temperature For Operation | -25-70°C |
| Contact Operation | slow-break |
| Cad Overall Depth | 80 mm |
| Package Quantity | 1 |
