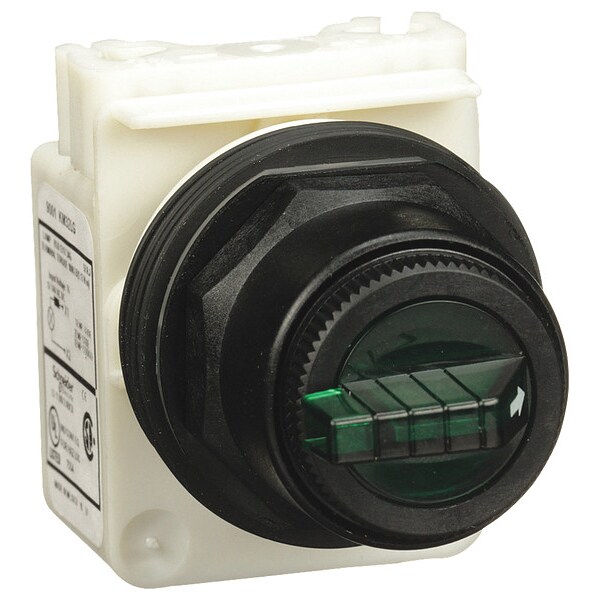

Interruptor selector de 3 posiciones, con un diámetro de 30mm en color verde, ideal para aplicaciones industriales y comerciales.
| Item | Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Plastic |
| Type of Operator | Selector Switch |
| Color | Green |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 6 |
| Position | 3 |
| Bezel Material | Plastic |
| Bezel Color | Black |
| Switch Operation @ Position D | No Fourth Position |
| IP Rating | IP66 |
| Lamp Type | LED |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, UL 508 |
| Lamp Module Type | Full Voltage |
| NEMA Enclosure Rating | 4, 3, 13, 12, 1, 2, 3R, 6 |
| Includes Operator Key | Not Applicable |
| Key Removal Position | Not Applicable |
| Operator Head Color | Green |
| Switch Function @ 4th Position | No Fourth Position |
| Operator Head Type | Short-Handled Knob |
| Number of Positions | 3 |
| Panel Cutout Diameter | 30 mm |
| Package Quantity | 1 |
