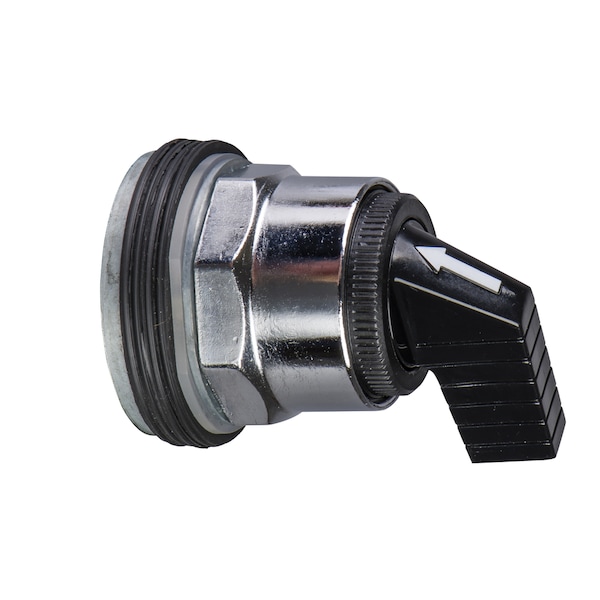

Cabezal de interruptor selector, Harmony 9001K, metálico, mango largo, negro, 30 mm, 3 posiciones, permanece en su lugar.
| Item | SELECTOR SWITCH OPERATOR 30MM T-K |
|---|---|
| Size | 30 mm |
| Bezel Material | metal |
| Standards | JIS C 4520 || CSA C22.2 No 14 || JIS C 852 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-1 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Contacts Type And Composition | without contact block |
| Mounting Diameter | 30 mm |
| Ambient Air Temperature For Operation | -25-70°C |
| Operator Profile | long handle, black long handle |
| Product Or Component Type | head for selector switch |
| Cap/Operator Or Lens Colour | black |
| Mechanical Durability | 500,000 cycle |
| Product Certifications | NEMA || UL 508 |
| Ambient Air Temperature For Storage | -40-70°C |
| Protective Treatment | TC |
| Type Of Operator | stay put |
| Overvoltage Category | class II IEC 61140 |
| Cam Profile | 6 |
| Operator Position Information | 3 positions |
| Product Compatibility | 9001KA1 side 1 or 2 |
| Device Presentation | basic element |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Device Short Name | 9001K |
| Shape Of Signaling Unit Head | octagonal |
| Range of Product | Harmony 9001K |
| Package Quantity | 1 |
