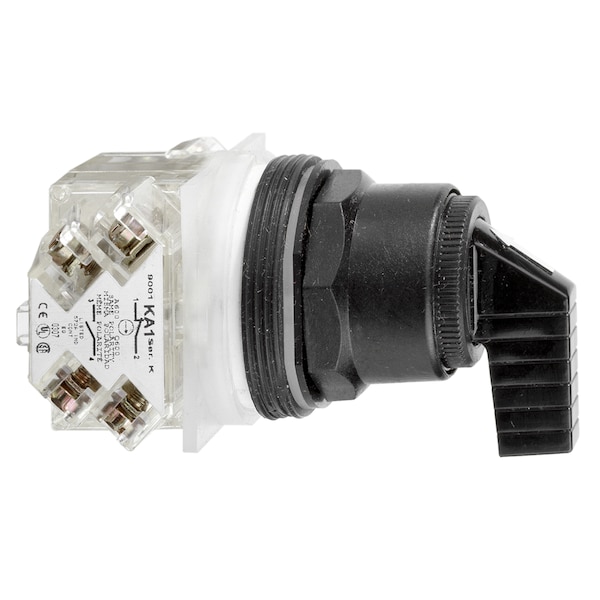

Cabeza de interruptor selector, Harmony 9001SK, plástico, mango largo, negro, 30mm, 2 posiciones, se queda en su lugar
| Item | SELECTOR SWITCH OPERATOR 30MM SK |
|---|---|
| Bezel Material | plastic |
| Standards | CSA C22.2 No 14 || JIS C 4520 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C 852 || EN/IEC 60947-5-1 |
| Device Short Name | 9001SK |
| Device Presentation | basic element |
| Type Of Operator | stay put |
| Ambient Air Temperature For Operation | -25-70°C |
| Electrical Shock Protection Class | class II IEC 61140 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Operator Position Information | 2 positions |
| Product Certifications | NEMA || UL 508 |
| Ambient Air Temperature For Storage | -40-70°C |
| Contacts Type And Composition | without contact block |
| Operator Profile | black long handle |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Mechanical Durability | 500,000 cycle |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TC |
| Shape Of Signaling Unit Head | octagonal |
| Mounting Diameter | 30 mm |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X || NEMA 6 |
| Product Compatibility | 9001KA2 side 1 or 2 |
| Product Or Component Type | head for selector switch |
| Cam Profile | 5 |
| Cap/Operator or Lens Colour | black |
| Range of Product | Harmony 9001SK |
| Package Quantity | 1 |
