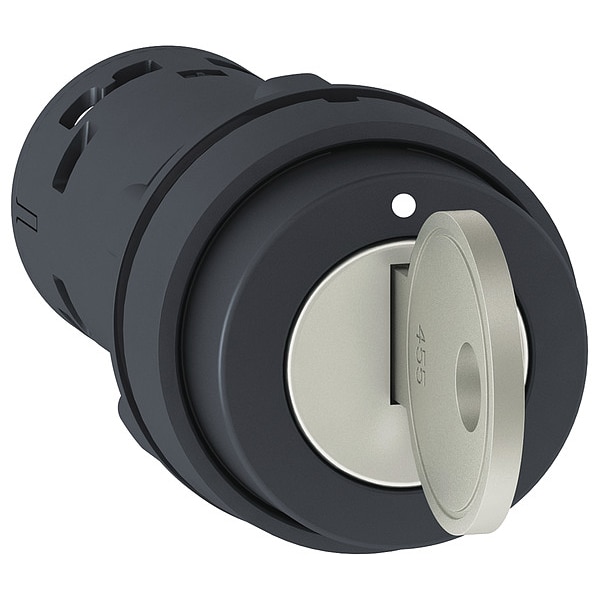

Interruptor selector, con llave, 2 posiciones, 22 mm.
| Item | Selector Switch |
|---|---|
| Size | 22 mm |
| Type of Operator | Keyed |
| Contact Form | 1 NO |
| Action | Maintained |
| Operator Head Material | Metal |
| Cam | No Cam Included |
| Color | Silver |
| NEMA Rating | 12, 3 |
| Bezel Material | Plastic |
| Key Removal | Left |
| Bezel Color | Black |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C8201-1, JIS C8201-5-1, UL 508 |
| DC Contact Rating | 0.1 A @ 250 V, 0.22 A @ 125 V |
| Includes | Key |
| AC Contact Rating | 0.3 A @ 240 V, 0.6 A @ 120 V |
| IP Rating | IP65, IP20 |
| Lamp Type | Not Applicable |
| Contact Rating | 0.1A @ 250V DC, 0.22A @ 125V DC, 0.3A @ 125V AC, 0.6A @ 120V AC |
| Series | XB7 |
| Lamp Module Type | Not Applicable |
| NEMA Contact Rating Designation | D600, R600 |
| Shock Resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
| Electrical Shock Protection Class | class II IEC 61140 |
| Terminals Description Iso N°1 | NO |
| Shape Of Signaling Unit Head | round |
| Ambient Air Temperature For Storage | -40-70°C |
| Product Or Component Type | switch |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
| Nema Degree Of Protection | NEMA 12 UL 50 E || NEMA 3 UL 50 E |
| Operator Position Information | 2 positions 90° |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mm² without cable end EN/IEC 60947-1 |
| Key Withdrawal Position | left-hand |
| Contact Operation | slow-break |
| Ip Degree Of Protection | IP20 IEC 60529 rear face) || IP65 IEC 60529 front face) |
| Device Short Name | XB7 |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Short-Circuit Protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 |
| Protective Treatment | TH |
| [Ie] Rated Operational Current | 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 |
| Electrical Durability | 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C |
| Contacts Type And Composition | 1 NO |
| Shape Of Screw Head | cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Ambient Air Temperature For Operation | -25-70°C |
| Fixing Center | >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Fixing Mode | fixing nut 2-2.4 N.m |
| Type Of Keylock | key 455 |
| Device Mounting | fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1 |
| Positive Opening | without |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Cad Overall Depth | 83 mm |
| Mechanical Durability | 300,000 cycle |
| Electrical Reliability | λ < 10exp(-6) 17 V 5 mA IEC 60947-5-4 |
| Cad Overall Width | 29 mm |
| Cad Overall Height | 29 mm |
| Mounting Diameter | 22 mm |
| Rated Operational Current | 0.1 A 250 V, DC-13, R300 IEC 60947-5-1; 0.22 A 125 V, DC-13, R300 IEC 60947-5-1; 0.3 A 240 V, AC-14, D300 IEC 60947-5-1; 0.6 A 120 V, AC-14, D300 IEC 60947-5-1 |
| Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Terminals Description Iso N°1 | NO |
| Lamp Voltage - Maximum | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Operator Head Type | Keyed |
| Operator Head Color | Black |
| Panel Cutout Diameter | 22 mm |
| Operator Illumination | Non-Illuminated |
| Includes Operator Key | Key Included |
| Hazardous Location Specification | Not Rated |
| Key Removal Position | Left |
| NEMA Enclosure Rating | 3, 4, 12 |
| Switch Function @ 1st Position | Off |
| Number of Positions | 2 |
| Switch Function @ 3rd Position | No Third Position |
| Switch Function @ 2nd Position | On |
| Switch Function @ 4th Position | No Fourth Position |
| Package Quantity | 1 |
