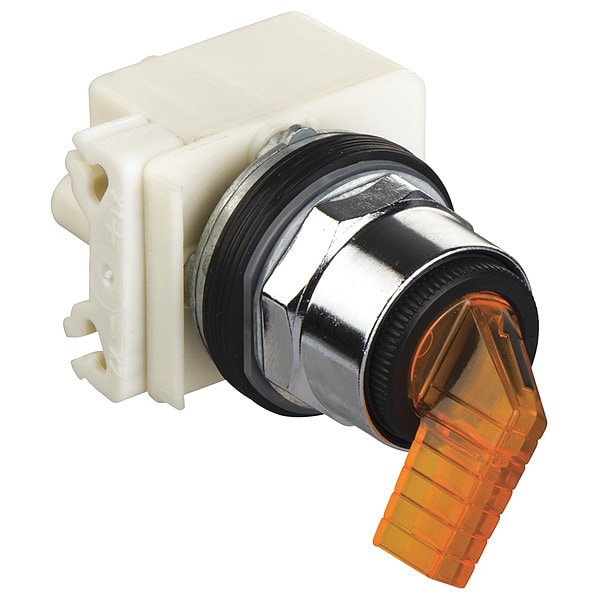

SelectorSwitch, Iluminado, 2 posiciones, 30mm, Amarillo
| Item | Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Metal |
| Type of Operator | Long Handle |
| Contact Form | Not Applicable |
| Action | Maintained |
| Operator Head Material | Polycarbonate |
| Cam | E |
| Color | Yellow |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 6 |
| Position | 2 |
| Bezel Material | Metal |
| Bezel Color | Chrome |
| Series | 9001K |
| Switch Operation @ Position D | No Fourth Position |
| IP Rating | IP66 |
| DC Contact Rating | Not Applicable |
| Lamp Type | LED |
| Lamp Module Type | Full Voltage |
| Switch Operation @ Position C | No Third Position |
| AC Contact Rating | Not Applicable |
| Standards | UL 508 |
| Panel Cutout Diameter | 30 mm |
| Operator Head Type | Short-Handled Knob |
| Lamp Voltage - Maximum | 28 V |
| Key Removal Position | Not Applicable |
| Hazardous Location Specification | Not Rated |
| Operator Head Color | Yellow |
| Number of Positions | 2 |
| Contact Block Material | Metal |
| Switch Function @ 2nd Position | On |
| Operator Illumination | Illuminated |
| Manufacturer Warranty Length | 18 mo |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 2, 3R |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Function @ 1st Position | Off |
| Switch Function @ 3rd Position | No Third Position |
| Includes Operator Key | Not Applicable |
| Ambient Air Temperature For Operation | -25-70°C |
| Device Presentation | basic element |
| Operator Profile | yellow standard knob |
| Mounting Diameter | 30 mm |
| Product Or Component Type | head for illuminated selector switch |
| [Us] Rated Supply Voltage | 24 to 28 V AC/DC |
| Bulb Base | BA 9s |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Mechanical Durability | 500,000 cycle |
| Electrical Shock Protection Class | class II IEC 61140 |
| Product Certifications | UL 508 || NEMA |
| Protective Treatment | TC |
| Ambient Air Temperature For Storage | -40-70°C |
| Shape Of Signaling Unit Head | round |
| Operator Position Information | 2 positions |
| Light Block Colour | yellow |
| Light Source | LED |
| Contacts Type And Composition | without contact block |
| Device Short Name | 9001K |
| Light Block Supply | direct |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Package Quantity | 1 |
