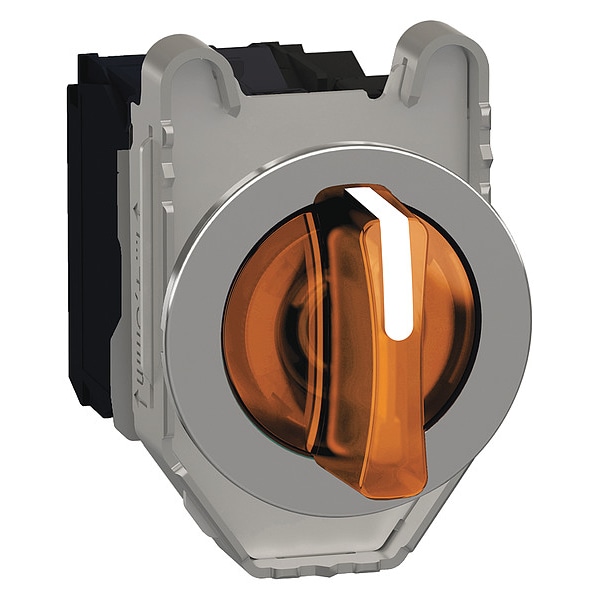

SelectorSwitch, Iluminado, 3 Posiciones, 30mm, Naranja
| Item | Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Metal |
| Type of Operator | Lever |
| Contact Form | 1NO/1NC |
| Action | Maintained |
| Operator Head Material | Plastic |
| Cam | No Cam Included |
| Color | Orange |
| NEMA Rating | 12, 13, 4, 4X |
| Bezel Material | Chrome Plated Metal |
| Position | 3 |
| Bezel Color | Chrome |
| Depth | 69.5 mm |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| Lamp Voltage | 110 to 120V AC/DC |
| Lamp Module Type | Full Voltage |
| Standards | CCC, CSA, EAC, UL Listed |
| Lamp Module Voltage | 110 to 120V AC |
| Contact Rating | 0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC |
| AC Contact Rating | 1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V |
| IP Rating | IP69K, IP67, IP69, IP66 |
| Height | 53 mm |
| NEMA Contact Rating Designation | A600, Q600 |
| Lamp Type | LED |
| Series | XB4 |
| Width | 36.6 mm |
| Switch Operation @ Position D | No Fourth Position |
| Overall Width | 1.44 in |
| Overall Height | 2.09 in |
| Switch Function @ 2nd Position | Off |
| Operator Illumination | Illuminated |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2 |
| Panel Cutout Diameter | 30 mm |
| Switch Function @ 1st Position | On |
| Lamp Voltage - Maximum | 120 V AC |
| Operator Head Type | Short-Handled Knob |
| Operator Head Color | Orange |
| Contact Block Material | Metal |
| Overall Depth | 2.74 in |
| Key Removal Position | Not Applicable |
| Number of Positions | 3 |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Function @ 3rd Position | On |
| Hazardous Location Specification | Not Rated |
| Includes Operator Key | Not Applicable |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Signalling Type | steady |
| Supply Voltage Limits | 100 to 132 V AC |
| Electrical Shock Protection Class | class I IEC 60536 |
| Current Consumption | 14 mA |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E |
| Shape Of Signaling Unit Head | round |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| [Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Product Or Component Type | switch |
| Terminals Description Iso N°1 | NO || NC |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Operator Profile | orange standard handle |
| Bulb Base | integral LED |
| Device Mounting | built-in 30.75 mm +/- 0.25 mm |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 |
| Electrical Reliability | λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Ik Degree Of Protection | IK04 IEC 50102 |
| Contacts Material | silver alloy |
| Contact Operation | slow-break |
| Operating Torque | 0.14 N.m NO changing electrical state |
| Protective Treatment | TH |
| Device Short Name | XB4F |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Operator Position Information | 3 positions +/- 45° |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Contacts Usage | standard contacts |
| Electromagnetic Emission | class B IEC 55011 |
| Fixing Mode | by screws 0.8 N.m 0.8 to 1.2 Nm) |
| Contacts Type And Composition | 1 NO + 1 NC |
| Shape Of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Positive Opening | with NC contact EN/IEC 60947-5-1 appendix K |
| Mechanical Durability | 500,000 cycle |
| Mounting Diameter | 30.5 mm |
| [Us] Rated Supply Voltage | 110 to 120 V AC 50/60 Hz |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Ambient Air Temperature For Operation | -40-70°C |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| Device Presentation | complete product |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Head Type | built-in, flush |
| Ambient Air Temperature For Storage | -40-70°C |
| Light Source | universal LED |
| Fixing Collar Material | zamak |
| Product Certifications | UL Listed || CSA || CCC || EAC |
| Package Quantity | 1 |
