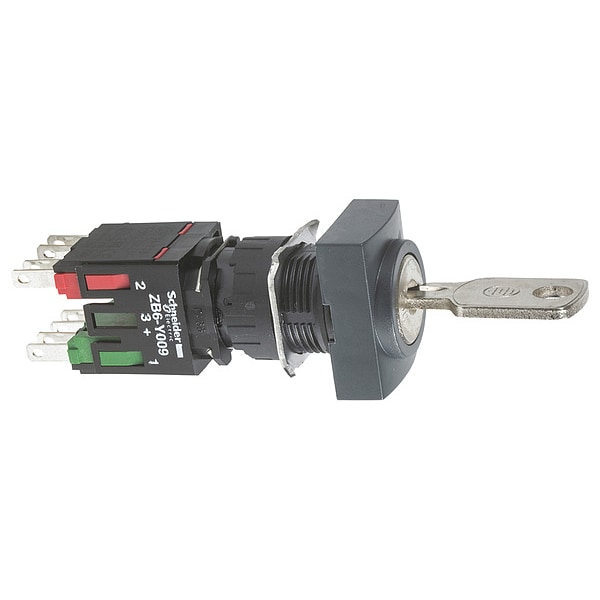

SelectorSwitch, con llave, no iluminado, 2 posiciones, 16mm.
| Item | Selector Switch |
|---|---|
| Size | 16 mm |
| Basic Material | Plastic |
| Type of Operator | Lever |
| Action | Maintained |
| Contact Form | 1NO/1NC |
| Cam | No Cam Included |
| Operator Head Material | Metal |
| Color | Black |
| Bezel Material | Plastic |
| Position | 2 |
| Bezel Color | Black |
| IP Rating | IP65 |
| DC Contact Rating | 0.1 A @ 250 V, 0.22 A @ 125 V |
| Standards | CCC, CSA, GOST, UL Listed |
| Switch Operation @ Position C | No Third Position |
| Lamp Type | Not Applicable |
| Includes | Ronis Key |
| AC Contact Rating | 1.5 A @ 240 V, 3 A @ 120 V |
| Contact Rating | 0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC |
| Lamp Module Type | Not Applicable |
| Series | XB6 |
| Electrical Reliability | λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN 60947-5-4 |
| Positive Opening | IEC, with EN 60947-5-1 appendix K |
| Key Withdrawal Position | in any position |
| Cad Overall Depth | 80 mm |
| Device Short Name | XB6 |
| Product Certifications | GOST, CCC || UL || CSA |
| Product Or Component Type | switch |
| Electrical Durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Protective Treatment | TC |
| Shape Of Signaling Unit Head | rectangular |
| Operating Position | any position |
| Mounting Diameter | 16 mm |
| Type Of Keylock | key 200 |
| Contacts Material | silver alloy |
| Ambient Air Temperature For Operation | -25-70°C |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Cad Overall Width | 24 mm |
| Operator Profile | key switch |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
| Ambient Air Temperature For Storage | -40-70°C |
| Connections - Terminals | Faston connectors 2.8 x 0.5 mm |
| Contacts Type And Composition | 1 NO + 1 NC |
| [Ie] Rated Operational Current | 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| Cad Overall Height | 18 mm |
| Mechanical Durability | 200,000 cycle |
| Vibration Resistance | +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Operator Position Information | 2 positions 70° |
| Electrical Shock Protection Class | class II IEC 61140 |
| Terminals Description Iso N°1 | NO || NC |
| Contact Operation | slow-break |
| Short-Circuit Protection | 6 A cartridge fuse gG |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Terminals Description Iso N°1 | NO || NC |
| Contact Block Material | Plastic |
| Hazardous Location Specification | Not Rated |
| Switch Function @ 3rd Position | No Third Position |
| Includes Operator Key | Key Included |
| Manufacturer Warranty Length | 18 mo |
| Switch Function @ 4th Position | No Fourth Position |
| Number of Positions | 2 |
| Operator Head Color | Black |
| Switch Function @ 2nd Position | On |
| Switch Function @ 1st Position | Off |
| Panel Cutout Diameter | 16 mm |
| Operator Illumination | Non-Illuminated |
| Key Removal Position | Any Position |
| NEMA Enclosure Rating | 12, 1 |
| Operator Head Type | Keyed |
| Lamp Voltage - Maximum | Not Applicable |
| Package Quantity | 1 |
