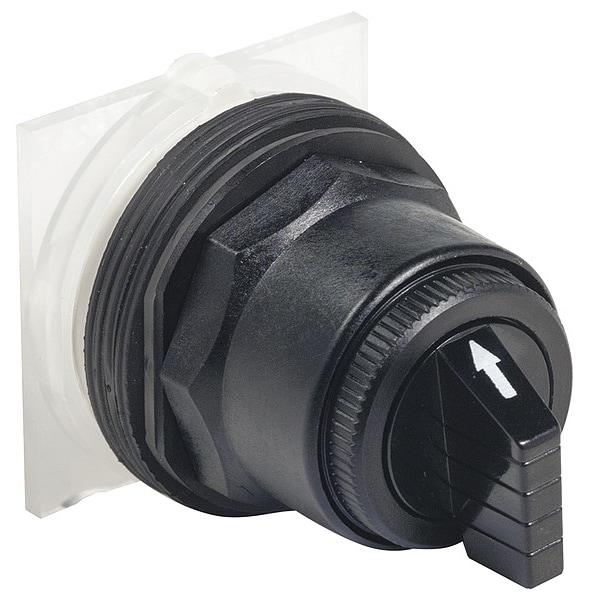

SelectorSwitch de mango corto, negro, 3 posiciones, 30 mm.
| Item | Short-Handled Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Plastic |
| Type of Operator | Lever |
| Action | Maintained, Momentary |
| Cam | C |
| Operator Head Material | Plastic |
| Operator Color | Black |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 4X, 6 |
| Position | 3 |
| Bezel Material | Plastic |
| Switch Operation @ Position D | No Fourth Position |
| IP Rating | IP66 |
| Series | 9001SK |
| Key Number | No Key |
| Standards | CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR |
| Ambient Air Temperature For Operation | -25-70°C |
| Operator Position Information | 3 positions |
| Mounting Diameter | 30 mm |
| Contacts Type And Composition | without contact block |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Electrical Shock Protection Class | class II IEC 61140 |
| Ambient Air Temperature For Storage | -40-70°C |
| Product Certifications | CSA LR24590 class 3211 03 || CE || UL listed file E42259 CCN NKCR |
| Product Or Component Type | head for selector switch |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Protective Treatment | TC |
| Device Short Name | 9001SK |
| Device Presentation | basic element |
| Key Removal Position | Not Applicable |
| Includes Operator Key | Not Applicable |
| Switch Function @ 2nd Position | Not Applicable |
| Operator Illumination | Non-Illuminated |
| Manufacturer Warranty Length | 18 mo |
| Operator Head Type | Short-Handled Knob |
| Panel Cutout Diameter | 30 mm |
| Hazardous Location Specification | Not Rated |
| Number of Positions | 3 |
| Switch Function @ 4th Position | No Fourth Position |
| Operator Head Color | Black |
| Switch Function @ 3rd Position | Not Applicable |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2, 3R |
| Switch Function @ 1st Position | Not Applicable |
| Package Quantity | 1 |
