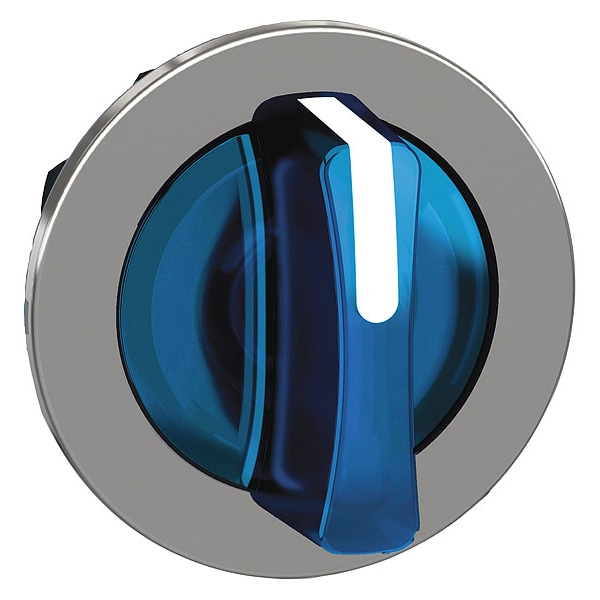

Interruptor selectivo de mano corta, iluminado, azul, de 3 posiciones, de 30 mm.
| Item | Short-Handled Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Metal |
| Action | Maintained, Momentary |
| Cam | No Cam Included |
| Operator Head Material | Plastic |
| Operator Color | Blue |
| Bezel Material | Chrome Plated Metal |
| Position | 3 |
| Bezel Color | Chrome |
| Series | XB4 |
| IP Rating | IP69K, IP67, IP69, IP66 |
| Standards | CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508 |
| Lamp Voltage | Dependant on Module Used |
| Lamp Module Type | Module Not Included |
| Lamp Module Voltage | Module Not Included |
| Lamp Type | LED |
| Manufacturer Warranty Length | 18 mo |
| Number of Positions | 3 |
| Switch Function @ 2nd Position | Not Applicable |
| Switch Function @ 4th Position | No Fourth Position |
| NEMA Enclosure Rating | 3, 4, 13, 12, 1, 4X, 2 |
| Operator Head Color | Blue |
| Switch Function @ 3rd Position | Not Applicable |
| Operator Head Type | Short-Handled Knob |
| Operator Illumination | Illuminated |
| Panel Cutout Diameter | 30 mm |
| Includes Operator Key | Not Applicable |
| Key Removal Position | Not Applicable |
| Switch Function @ 1st Position | Not Applicable |
| Hazardous Location Specification | Not Rated |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Ambient Air Temperature For Operation | -40-70°C |
| Ambient Air Temperature For Storage | -40-70°C |
| Mounting Diameter | 30.5 mm |
| Product Compatibility | universal LED |
| Operator Profile | blue standard handle |
| Type Of Operator | to centre spring return |
| Mechanical Durability | 500,000 cycle |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6 |
| Cad Overall Depth | 47 mm |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| Device Short Name | ZB4F |
| Product Or Component Type | head for illuminated selector switch |
| Operator Position Information | 3 positions +/- 45° |
| Overvoltage Category | class I IEC 60536 |
| Device Presentation | basic element |
| Head Type | built-in, flush |
| Product Certifications | UL Listed || CSA || CCC || EAC |
| Shape Of Signaling Unit Head | round |
| Cad Overall Width | 36.6 mm |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E |
| Protective Treatment | TH |
| Cad Overall Height | 36.6 mm |
| Electrical Composition Code | M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M4 4 single and double front mounting integral LED |
| Package Quantity | 1 |
