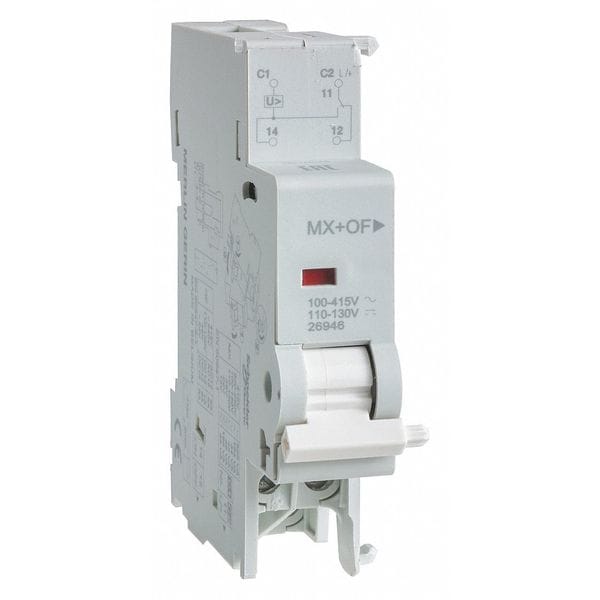

Disparador de Desconexión de Derivación, 100 a 415V CA/110 a 130V CC, 6 A, 0 Polos

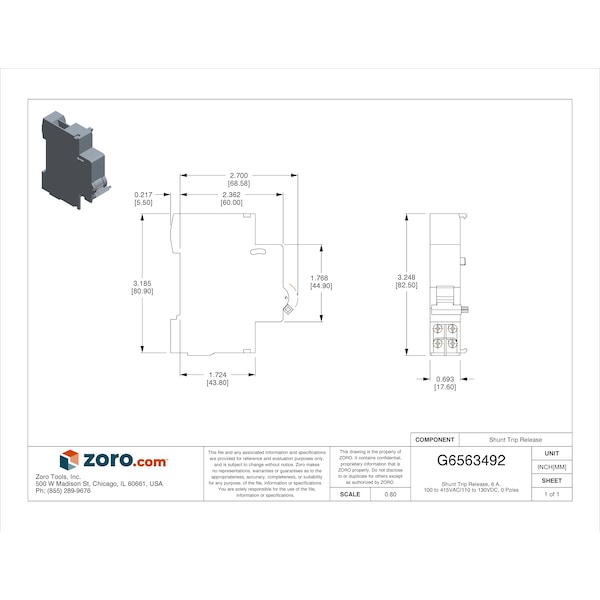

| CAD Available | Yes |
|---|---|
| Item | Shunt Trip Release |
| Amps | 6 |
| Voltage | 100 to 415V AC/110 to 130V DC |
| Number of Poles | 0 |
| Includes | OC Contact |
| For Use With | Multi-9 Circuit Breakers |
| Height | 82.5 mm |
| Width | 18 mm |
| Standards | EN/IEC 60947-1 |
| DC Voltage Rating | 110/130V DC |
| AC Voltage Rating | 110/415V AC |
| Max. Operating Temp. | 122 deg F |
| Min. Operating Temp. | -13 Degrees F |
| Depth | 68 mm |
| Mounting Mode | fixed |
| [Ie] Rated Operational Current | 3 A 415 V AC || 6 A <= 240 V AC |
| Local Signalling | action indicator |
| Ambient Air Temperature For Operation | -25-50 2°C |
| Ambient Air Temperature For Storage | -40-85 2°C |
| Product Certifications | CSA || CCC || UL || PCT || UR |
| Range | Multi9 |
| [Uc] Control Circuit Voltage | 110...415 V AC 50/60 Hz || 110...130 V DC |
| Pollution Degree | 3 |
| 9 Mm Pitches | 2 |
| Connections - Terminals | clamp terminal bottom) - 1 2.5-2.5 mm2² AWG 14) - rigid || clamp terminal bottom) - 2 1.5-1.5 mm2² AWG 16) - rigid |
| Net Weight | 0.065 kg |
| Mounting Support | rail |
| Signal Contacts Composition | 1 C/O |
| Wire Stripping Length | 9 mm bottom |
| Tightening Torque | 1-1 N.m bottom |
| Device Short Name | MX + OF |
| Product Or Component Type | shunt trip release |
| Range Compatibility | Multi9 (Multi9 C60) C60BP || Multi9 (Multi9 C60) C60BPR || Multi9 (Multi9 C60) C60SP || Multi9 (Multi9 GFP) GFP || Multi9 (Multi9 C60H-DC) C60H-DC |
| Package Quantity | 1 |
