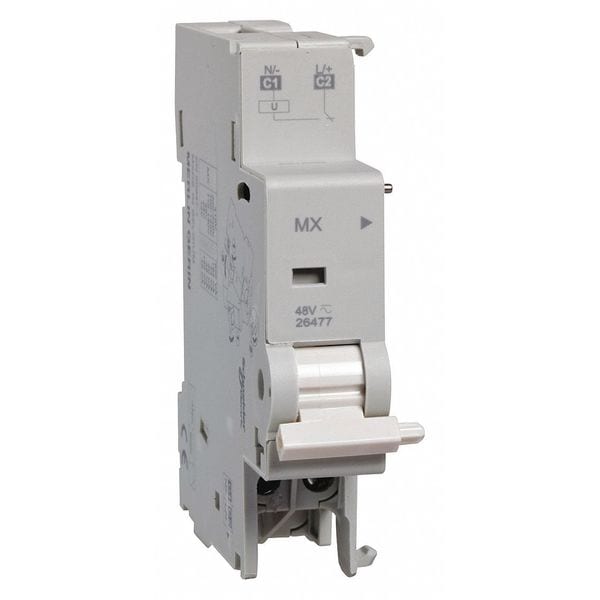

Shunt Trip Release, Multi-9 Circuit Breakers, 48V AC/48V DC, 0 Poles
| Item | Shunt Trip Release |
|---|---|
| For Use With | Multi-9 Circuit Breakers |
| Voltage | 48V AC/48V DC |
| Number of Poles | 0 |
| Height | 82.5 mm |
| Width | 18 mm |
| Standards | EN/IEC 60947-1 |
| Min. Operating Temp. | -13 deg F |
| DC Voltage Rating | 48V DC |
| Max. Operating Temp. | 122 deg F |
| AC Voltage Rating | 48V AC |
| Product Certifications | UR || CSA || PCT || UL |
| Wire Stripping Length | 9 mm bottom |
| Range Compatibility | Multi9 (Multi9 C60) C60BP || Multi9 (Multi9 C60) C60BPR || Multi9 (Multi9 C60) C60SP || Multi9 (Multi9 GFP) GFP || Multi9 (Multi9 C60H-DC) C60H-DC |
| Device Short Name | MX |
| Comb Busbar And Distribution Block Compatibility | top YES |
| Depth | 68 mm |
| Tropicalisation | 2 EN/IEC 60947-1 |
| Local Signalling | action indicator |
| Pollution Degree | 3 |
| Product Or Component Type | shunt trip release |
| 9 Mm Pitches | 2 |
| Connections - Terminals | clamp terminal bottom) - 1 2.5-2.5 mm2² AWG 14) - rigid || clamp terminal bottom) - 2 1.5-1.5 mm2² AWG 16) - rigid |
| Mounting Mode | fixed |
| Relative Humidity | 95-95 % 55-55 2°C |
| Ambient Air Temperature For Operation | -25-50 2°C |
| [Uc] Control Circuit Voltage | 48 V AC 50/60 Hz || 48 V DC |
| Net Weight | 0.06 kg |
| Range | Multi9 |
| Ambient Air Temperature For Storage | -40-85 2°C |
| Tightening Torque | 1-1 N.m bottom |
| Mounting Support | DIN rail |
| Package Quantity | 1 |
