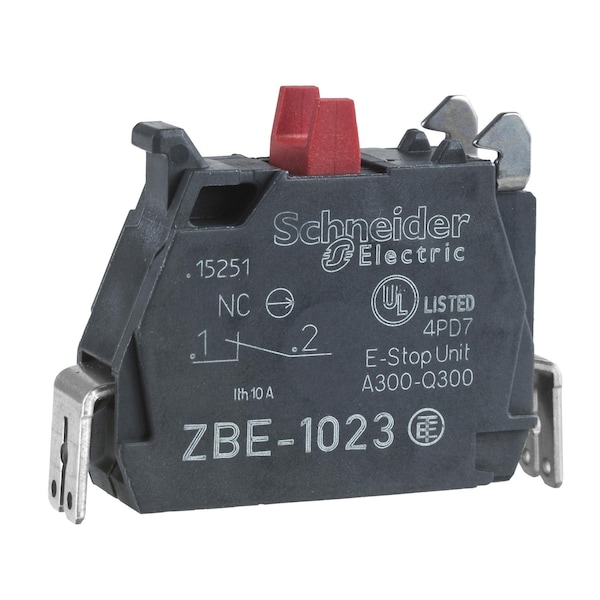

Bloque de contacto único, Harmony XB4, aleación de plata, conector Faston, 1 NC, montaje frontal.
| Item | Single contact block for head 022 1NC si |
|---|---|
| Standards | EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-1 |
| Contacts Type And Composition | 1 NC |
| Product Or Component Type | contact block |
| Mounting Of Block | front mounting |
| Contacts Material | silver alloy |
| Operating Travel | 1.5 mm NC changing electrical state) || 4.3 mm total travel) |
| Connections - Terminals | Faston connector 1 x 6.35 mm || Faston connector 2 x 2.8 mm |
| Contact Operation | slow-break |
| Ambient Air Temperature For Storage | -40-70°C |
| Ambient Air Temperature For Operation | -40-70°C |
| Operating Force | 2 N NC changing electrical state |
| Device Short Name | ZBE |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Electrical Composition Code | C1 9 ) || C2 7 ) || C3 6 ) || C4 4 ) || C5 5 ) || C6 3 ) || C7 4 ) || C8 2 ) || C9 3 ) || C12 6 ) || M1 6 ) || M2 4 ) || M3 4 ) || M5 2 ) || M6 2 ) || M7 6 ) || M8 4 ) || M9 2 ) || SF1 3 ) || SF2 2 ) || MF1 2 ) || MF2 2 ) || C10 2 ) || M4 2 ) || C13 1 ) |
| Mechanical Durability | 10,000,000 cycle |
| Positive Opening | IEC, with EN 60947-5-1 appendix K |
| [Ui] Rated Insulation Voltage | 250 V 3)EN 60947-1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Product Certifications | DNV || UL || CSA || LROS (Lloyds register of shipping) || GL || BV |
| Contacts Usage | contacts |
| Contact Block Type | single |
| Protective Treatment | TH |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Range of Product | Harmony XB5, Harmony XB4 |
| Package Quantity | 1 |
