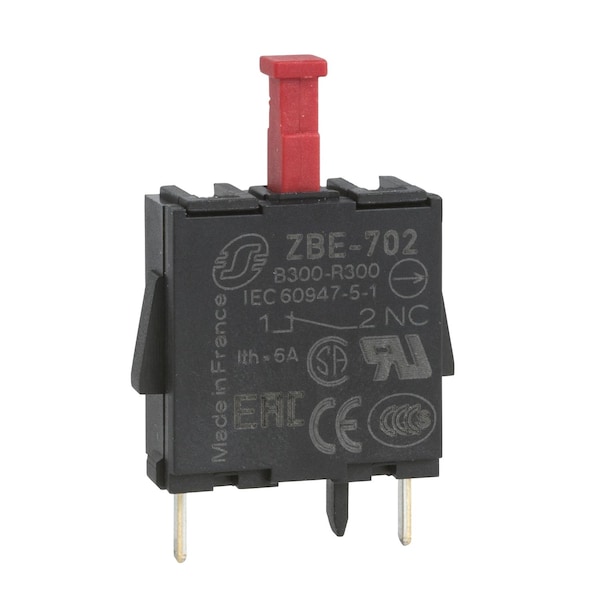

Bloque de contacto único, Harmony XB4, aleación de plata, pines para placa de circuito impreso, 1NC.
| Item | Single contact block for head 022 1NC si |
|---|---|
| Standards | IEC 60947-5-4, JIS C8201-5-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-1, JIS C8201-1 |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Operating Travel | 1.5 mm NC changing electrical state), 4.3 mm total travel) |
| Protective Treatment | TH |
| Contact Operation | slow-break |
| [Ie] Rated Operational Current | 3 A 120 V, AC-15, B300 IEC 60947-5-1, 1.5 A 240 V, AC-15, B300 IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 |
| Contacts Material | silver alloy |
| Short-Circuit Protection | 4 A cartridge fuse gG IEC 60947-5-1 |
| Device Short Name | ZBE |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70°C |
| Positive Opening | with IEC 60947-5-1 appendix K |
| Product or Component Type | contact block |
| Operating Force | 2 N NC changing electrical state |
| Ip Degree of Protection | IP20 IEC 60529 |
| Contacts Usage | contacts |
| [Ith] Conventional Free Air Thermal Current | 6 A IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Contacts Type And Composition | 1 NC |
| Ambient Air Temperature For Operation | -25-70°C |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Mechanical Durability | 5,000,000 cycle |
| Contact Block Type | single |
| Connections - Terminals | pins for printed circuit board |
| Range of Product | Harmony, Harmony XB4 XB5 |
| Product Certifications | CSA || UL || GL || DNV || LROS (Lloyds register of shipping) || BV |
| Package Quantity | 1 |
