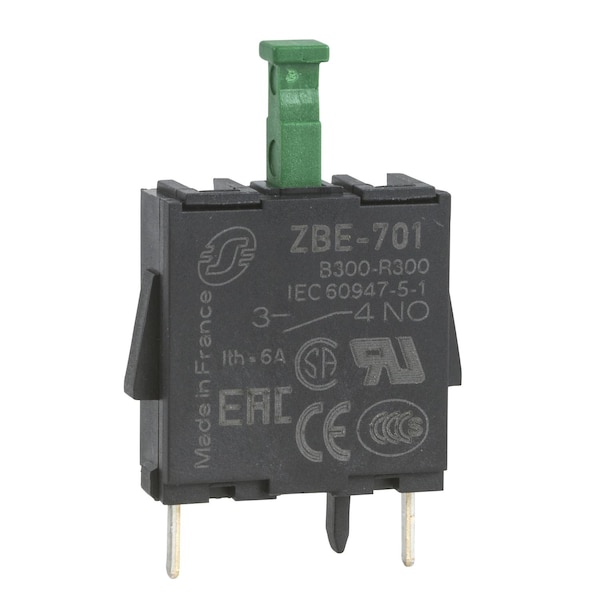

Bloque de contacto único, Harmony XB4, aleación de plata, pines para placa de circuito impreso, 1 normalmente abierto.
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Contact Blocks |
| Standards | EN/IEC 60947-5-1 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN 60947-1 |
| Connections - Terminals | pins for printed circuit board |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| [Ie] Rated Operational Current | 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 250 V 3)EN 60947-1 |
| Product Certifications | UL || GL || CSA || BV || LROS (Lloyds register of shipping) || DNV |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Device Short Name | ZBE |
| Contacts Usage | contacts |
| Product Or Component Type | contact block |
| Operating Force | 2.3 N NO changing electrical state |
| Short-Circuit Protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 |
| Protective Treatment | TH |
| Contact Operation | slow-break |
| Ambient Air Temperature For Operation | -25-70°C |
| Contact Block Type | single |
| Contacts Material | silver alloy |
| [Ith] Conventional Free Air Thermal Current | 6 A EN/IEC 60947-5-1 |
| Operating Travel | 2.6 mm NO changing electrical state) || 4.3 mm total travel) |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Contacts Type And Composition | 1 NO |
| Ambient Air Temperature For Storage | -40-70°C |
| Positive Opening | without |
| Mechanical Durability | 5,000,000 cycle |
| Range of Product | Harmony, Harmony XB4 XB5 |
| Package Quantity | 1 |
