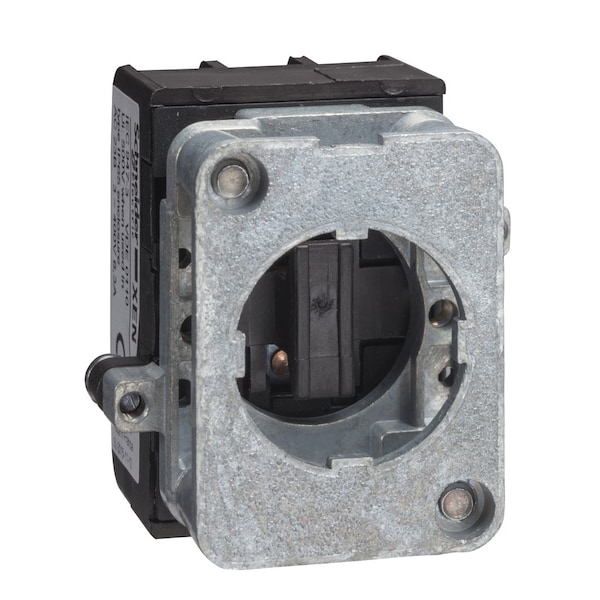

Bloque de aislamiento individual para circuito de energía, Harmony XAC, centros de fijación horizontales de 40 mm, terminal de tornillo con abrazadera, 3NC.
| Item | Single isolating block XACS - for power |
|---|---|
| Standards | IEC 60947-3, CSA C22.2 No 14 |
| Contact Operation | snap action |
| Rated Operational Power In W | 3000 W AC-23B 400 V |
| Mounting of Block | front mounting |
| Mechanical Durability | 1,000,000 cycle |
| Contact Code Designation | A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A, Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A |
| Ambient Air Temperature For Storage | -40-70°C |
| Contact Block Type | single |
| Electrical Circuit Type | power circuit |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Electrical Shock Protection Class | class II IEC 61140 |
| Product Compatibility | XACB |
| Range of Product | Harmony XAC |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Ambient Air Temperature For Operation | -25-70°C |
| [Ui] Rated Insulation Voltage | 400 V 3)IEC 60947-1 |
| Contact Block Application | emergency stop push-button |
| Contacts Type And Composition | 3 NC |
| Component Name | XACS |
| Horizontal Fixing Centres | 40 mm |
| Product or Component Type | isolating block |
| Connections - Terminals | screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Package Quantity | 1 |
